5530212F

Active

DIALIGHT

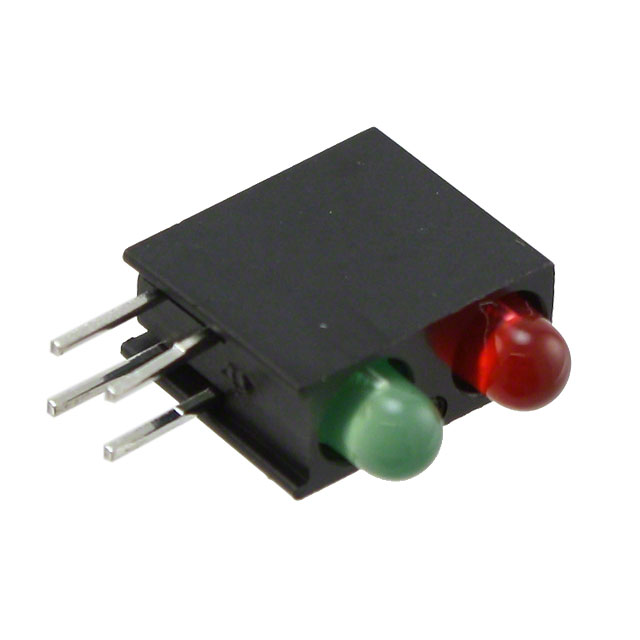

LED CBI 3MM BI-LVL GRN/RED RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet CBI Through Hole Selector Guide

5530212F

Active

DIALIGHT

LED CBI 3MM BI-LVL GRN/RED RA

Deep-Dive with AI

DocumentsDatasheet CBI Through Hole Selector Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5530212F

Color	Red (x 1), Green (x 1)
Configuration	2 High
Current	2 mA
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	1.6 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	60 °
Voltage Rating	1.9 V, 1.7 V
Wavelength - Peak	565 nm, 635 nm

5530212 Series

Part	Wavelength - Peak	Mounting Type	Viewing Angle	Color	Configuration [x]	Configuration [y]	Current	Millicandela Rating	Lens Style	Lens Type	Voltage Rating	Lens Size	Lens Size	Configuration
DIALIGHT 5530212006F	565 nm 635 nm	Through Hole Right Angle	60 °	Green (x 3) Red (x 3)	3	2	2 mA	1.6 mcd	Round with Domed Top	Diffused Tinted	1.7 V 1.9 V	3 mm	T-1
DIALIGHT 5530212F	565 nm 635 nm	Through Hole Right Angle	60 °	Green (x 1) Red (x 1)			2 mA	1.6 mcd	Round with Domed Top	Diffused Tinted	1.7 V 1.9 V	3 mm	T-1	2 High
DIALIGHT 5530212002F	565 nm 635 nm	Through Hole Right Angle	60 °	Green (x 1) Red (x 1)			2 mA	1.6 mcd		Diffused Tinted	1.7 V 1.9 V			2 High
DIALIGHT 5530212400F	565 nm 635 nm	Through Hole Right Angle	60 °	Green (x 1) Red (x 1)			2 mA	1.6 mcd	Round with Domed Top	Diffused Tinted	1.7 V 1.9 V	3 mm	T-1	2 High
DIALIGHT 5530212300F	565 nm 635 nm	Through Hole Right Angle	60 °	Green (x 1) Red (x 1)			2 mA	1.6 mcd	Round with Domed Top	Diffused Tinted	1.7 V 1.9 V	3 mm	T-1	2 High
DIALIGHT 5530212210F	565 nm 635 nm	Through Hole Right Angle	60 °	Green (x 1) Red (x 1)			2 mA	1.6 mcd	Round with Domed Top	Diffused Tinted	1.7 V 1.9 V	3 mm	T-1	2 High

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.66
		10	$ 1.75
		100	$ 1.28
		500	$ 1.10
		1000	$ 1.04
		2000	$ 0.99
		5000	$ 0.95
		10000	$ 0.92

Description

General part information

5530212 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 1), Red (x 1) Diffused, Tinted 1.9V Green, 1.7V Red 2mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
