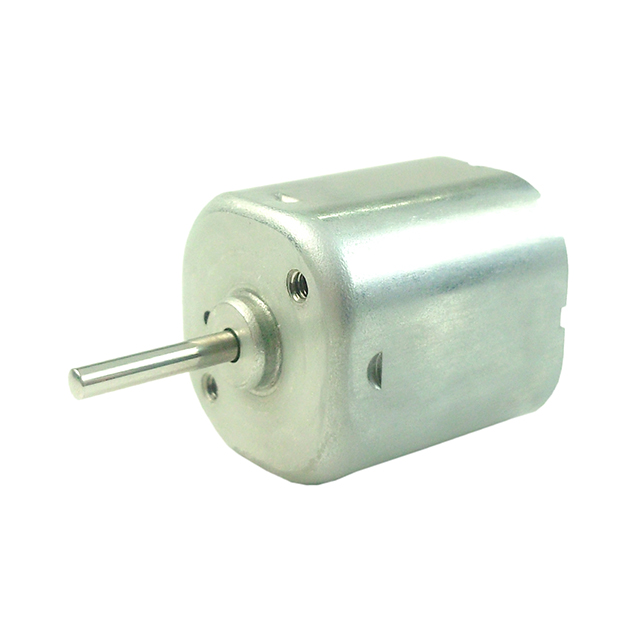

SE18J1DTY
ObsoleteNMB TECHNOLOGIES
STANDARD MOTOR 4756 RPM 12V
Deep-Dive with AI
Search across all available documentation for this part.
SE18J1DTY
ObsoleteNMB TECHNOLOGIES
STANDARD MOTOR 4756 RPM 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SE18J1DTY |
|---|---|
| Diameter - Shaft [diameter] | 2 mm |
| Diameter - Shaft [diameter] | 0.079 in |
| Function | Standard |
| Length - Shaft and Bearing | 0.504 in |
| Length - Shaft and Bearing | 12.8 mm |
| Motor Type | Brushed |
| Mounting Hole Spacing | 14 mm |
| Mounting Hole Spacing | 0.551 " |
| RPM | 4756 RPM |
| Size / Dimension [x] | 18.2 mm |
| Size / Dimension [x] | 0.717 in |
| Size / Dimension [y] | 0.717 " |
| Size / Dimension [y] | 18.2 mm |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 4 mNm |
| Torque - Rated (oz-in / mNm) | 0.566 oz-in |
| Type | DC Motor |
| Voltage - Rated | 12 VDC |
| Weight | 23.13 g |
| Weight | 0.051 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SE18J1 Series
Brushed DC Motor Standard 4756 RPM 12VDC
