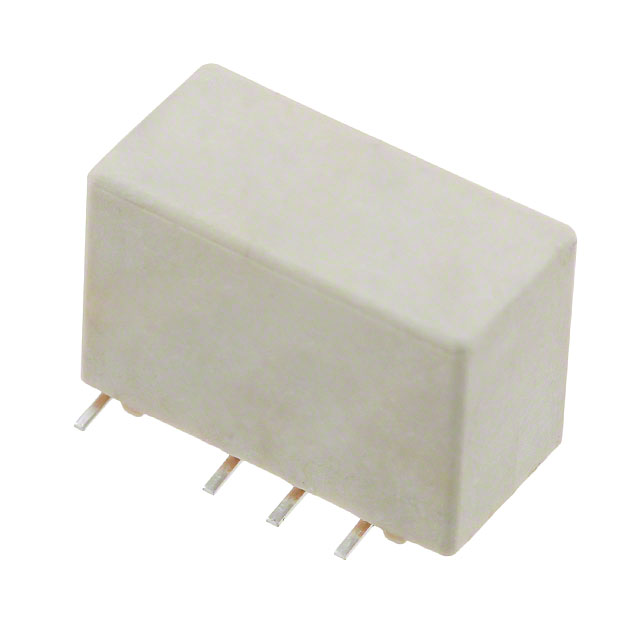

V23079E1208B301

Active

TE Connectivity Potter & Brumfield Relays

RELAY GENERAL PURPOSE DPDT 2A 3V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V23079E1208B301

Coil Current	46.7 mA
Coil Resistance	64 Ohms
Coil Type	Latching, Dual Coil
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	2 A
Load - Max Switching	440 W, 500 VA
Mounting Type	Surface Mount
Must Operate Voltage	2.25 VDC
Operate Time	4 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	4 ms
Switching Voltage	250 VAC, 220 VDC
Termination Style	Gull Wing

1393788 Series

Part	Mounting Type	Operate Time	Coil Type	Relay Type	Coil Current	Coil Resistance	Coil Voltage	Contact Material	Termination Style	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Load - Max Switching	Contact Form	Contact Rating (Current)	Must Operate Voltage	Must Release Voltage
TE Connectivity Potter & Brumfield Relays V23079B1211B301	Through Hole	4 ms	Latching Dual Coil	General Purpose	31 mA	145 Ohms	4.5 VDC	Gold (Au) Silver Nickel (AgNi)	PC Pin	220 VDC 250 VAC	85 °C	-40 °C	6 ms	440 W 500 VA	DPDT (2 Form C)	2 A
TE Connectivity Potter & Brumfield Relays V23079C1101B301	Through Hole	4 ms	Latching Single Coil	General Purpose	14 mA	357 Ohms	5 VDC	Gold (Au) Silver Nickel (AgNi)	PC Pin	220 VDC 250 VAC	85 °C	-40 °C	4 ms	440 W 500 VA	DPDT (2 Form C)	2 A	3.75 VDC
TE Connectivity Potter & Brumfield Relays V23079D1011B301	Surface Mount	4 ms	Non Latching	General Purpose	31.1 mA	145 Ohms	4.5 VDC	Gold (Au) Silver Nickel (AgNi)	Gull Wing	220 VDC 250 VAC	85 °C	-40 °C	4 ms	440 W 500 VA	DPDT (2 Form C)	2 A	3.38 VDC	0.45 VDC
TE Connectivity Potter & Brumfield Relays V23079F1108B301	Surface Mount	4 ms	Latching Single Coil	General Purpose	23.3 mA	128 Ohms		Gold (Au) Silver Nickel (AgNi)	Gull Wing	220 VDC 250 VAC	85 °C	-40 °C	4 ms	440 W 500 VA	DPDT (2 Form C)	2 A	2.25 VDC
TE Connectivity Potter & Brumfield Relays V23079E1208B301	Surface Mount	4 ms	Latching Dual Coil	General Purpose	46.7 mA	64 Ohms		Gold (Au) Silver Nickel (AgNi)	Gull Wing	220 VDC 250 VAC	85 °C	-40 °C	4 ms	440 W 500 VA	DPDT (2 Form C)	2 A	2.25 VDC
TE Connectivity Potter & Brumfield Relays V23079G1008B301	Surface Mount	4 ms	Non Latching	General Purpose	46.7 mA	64 Ohms		Gold (Au) Silver Nickel (AgNi)	Gull Wing	220 VDC 250 VAC	85 °C	-40 °C	4 ms	440 W 500 VA	DPDT (2 Form C)	2 A	2.25 VDC	0.3 VDC
TE Connectivity Potter & Brumfield Relays V23079A1001B301	Through Hole	4 ms	Non Latching	General Purpose		178 Ohms	5 VDC	Gold (Au) Silver Nickel (AgNi)	PC Pin	220 VDC 250 VAC	85 °C	-40 °C	4 ms	440 W 500 VA	DPDT (2 Form C)	2 A	3.75 VDC	0.5 VDC
TE Connectivity Potter & Brumfield Relays V23079D1001B301	Surface Mount	4 ms	Non Latching	General Purpose		178 Ohms	5 VDC	Gold (Au) Silver Nickel (AgNi)	Gull Wing	220 VDC 250 VAC	85 °C	-40 °C	4 ms	440 W 500 VA	DPDT (2 Form C)	2 A	3.75 VDC	0.5 VDC
TE Connectivity Potter & Brumfield Relays V23079H1211B301	Surface Mount	4 ms	Latching Dual Coil	General Purpose	31.1 mA	145 Ohms	4.5 VDC	Gold (Au) Silver Nickel (AgNi)	Gull Wing	220 VDC 250 VAC	85 °C	-40 °C	4 ms	440 W 500 VA	DPDT (2 Form C)	2 A	3.38 VDC
TE Connectivity Potter & Brumfield Relays V23079C1105B301	Through Hole	4 ms	Latching Single Coil	General Purpose	2.9 mA	8228 Ohms	24 VDC	Gold (Au) Silver Nickel (AgNi)	PC Pin	220 VDC 250 VAC	85 °C	-40 °C	6 ms	440 W 500 VA	DPDT (2 Form C)	2 A
