RSB1SOC24D
ObsoleteSQUARE D BY SCHNEIDER ELECTRIC

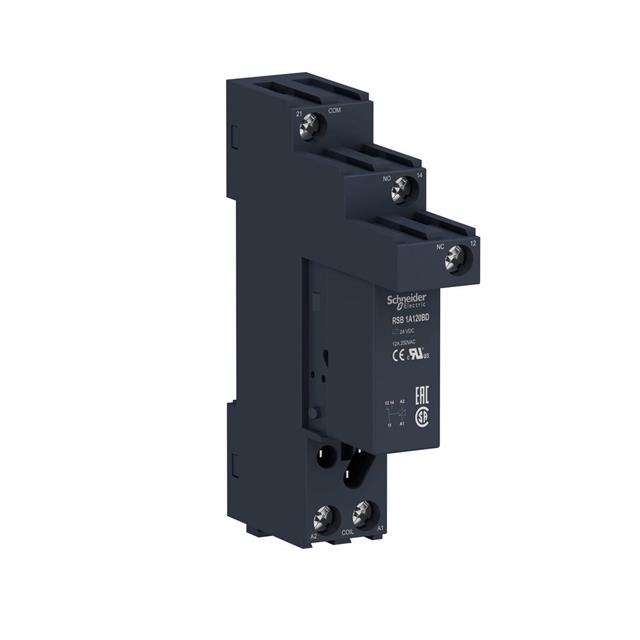

KIT CASE, ZELIO RELAY, SPDT, PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RSB1SOC24D
ObsoleteSQUARE D BY SCHNEIDER ELECTRIC
KIT CASE, ZELIO RELAY, SPDT, PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RSB1SOC24D |
|---|---|
| Approval Agency | CSA, UL, EAC |
| Coil Current | 16.7 mA |
| Coil Resistance | 1440 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 12 A |
| Load - Max Switching [Max] | 3000 VA |
| Mounting Type | DIN Rail |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage | 250 VDC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 24.66 | |
Description
General part information
RSB1S Series
General Purpose Relay SPDT (1 Form C) 24VDC Coil DIN Rail
