R191737000

Active

Radiall USA, Inc.

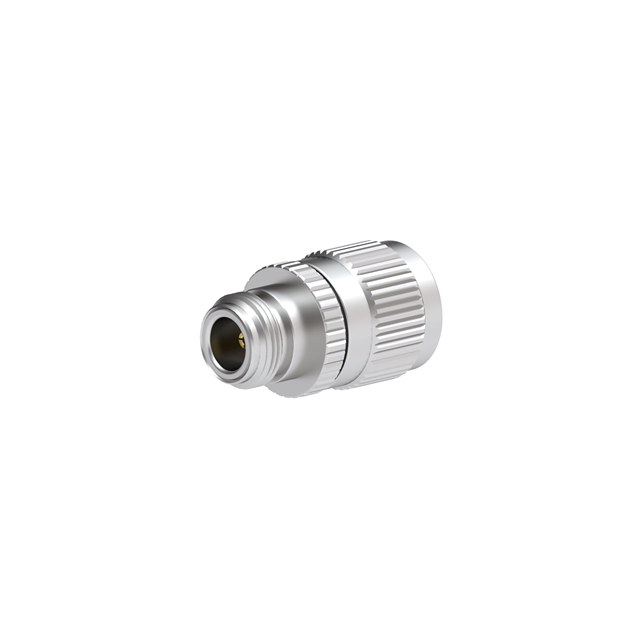

HN MALE - N FEMALE STRAIGHT ADAP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

HN MALE - N FEMALE STRAIGHT ADAP

Technical Specifications

Parameters and characteristics for this part

Specification	R191737000

Adapter Series	N to HN
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Male Pin, HN Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	3 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Frequency - Max [Max]	Mounting Type	Center Contact Plating	Style	Body Finish	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Adapter Type	Body Material	Convert To (Adapter End)	Adapter Series	Dielectric Material	Center Contact Material	Conversion Type	Convert From (Adapter End)	Mating Cycles
Radiall USA, Inc. R191737000	3 GHz	Free Hanging (In-Line)	Gold	Straight	Nickel	50 Ohms	155 °C	-55 °C	Plug to Jack	Brass	HN Plug Male Pin	N to HN	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Between Series	Female Socket N Jack
Radiall USA, Inc. R191731000	500 MHz	Free Hanging (In-Line)	Silver	Straight	Nickel	50 Ohms	155 °C	-55 °C	Plug to Jack	Brass	Female Socket UHF Jack	N to UHF	Polytetrafluoroethylene (PTFE)	Brass	Between Series	N Plug Male Pin	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 204.09

General part information

Adapter Coaxial Connector N Jack, Female Socket To HN Plug, Male Pin 50 Ohms
