SURS8320T3G-VF01

NRND

ON Semiconductor

POWER RECTIFIER, ULTRA-FAST RECOVERY, 3 A, 200 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Package Drawing-403AC-SMC 2-Lead +1

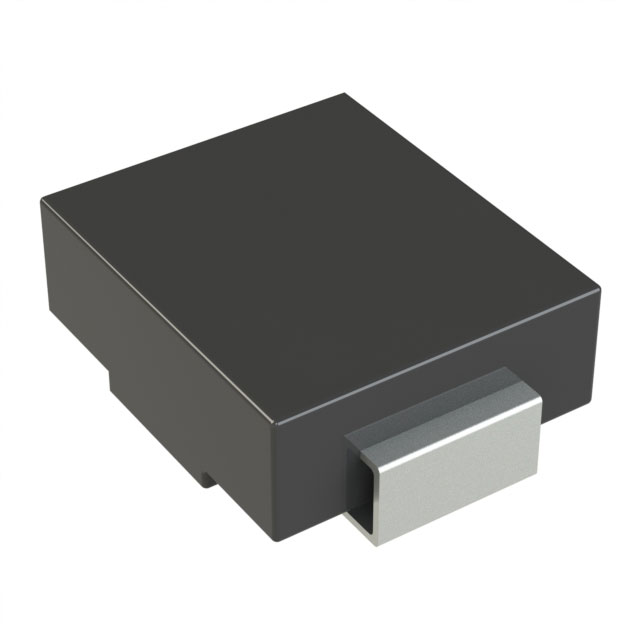

SURS8320T3G-VF01

NRND

ON Semiconductor

POWER RECTIFIER, ULTRA-FAST RECOVERY, 3 A, 200 V

Deep-Dive with AI

DocumentsDatasheet Package Drawing-403AC-SMC 2-Lead +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SURS8320T3G-VF01

Current - Average Rectified (Io)	4 A
Current - Reverse Leakage @ Vr	5 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-65 C
Package / Case	SMC, DO-214AB
Qualification	AEC-Q101
Reverse Recovery Time (trr)	35 ns
Speed	200 mA, 500 ns
Supplier Device Package	SMC
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	890 mV

SURS8320 Series

Power Rectifier, Ultra-Fast Recovery, 3 A, 200 V

Part	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Qualification	Reverse Recovery Time (trr)	Package / Case	Grade	Technology	Supplier Device Package	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
ON Semiconductor SURS8320T3G-VF01	5 µA	890 mV	Surface Mount	AEC-Q101	35 ns	DO-214AB SMC	Automotive	Standard	SMC	4 A	200 V	200 mA 500 ns	175 ░C	-65 C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.74
		10	$ 0.64
		100	$ 0.44
		500	$ 0.37
		1000	$ 0.31
	Digi-Reel®	1	$ 0.74
		10	$ 0.64
		100	$ 0.44
		500	$ 0.37
		1000	$ 0.31
	Tape & Reel (TR)	2500	$ 0.28
		5000	$ 0.27
		12500	$ 0.25
		25000	$ 0.24
ON Semiconductor	N/A	1	$ 0.26

Description

General part information

SURS8320 Series

The Ultrafast Rectifier employs state of the art epitaxial construction with oxide passivation and metal overlay contact. It is ideally suited for high voltage, high frequency rectification or as free wheeling and protection diodes in surface mount applications, where compact size and weight are critical to the system.
