Q-080720008009i

Active

Amphenol Custom Cable

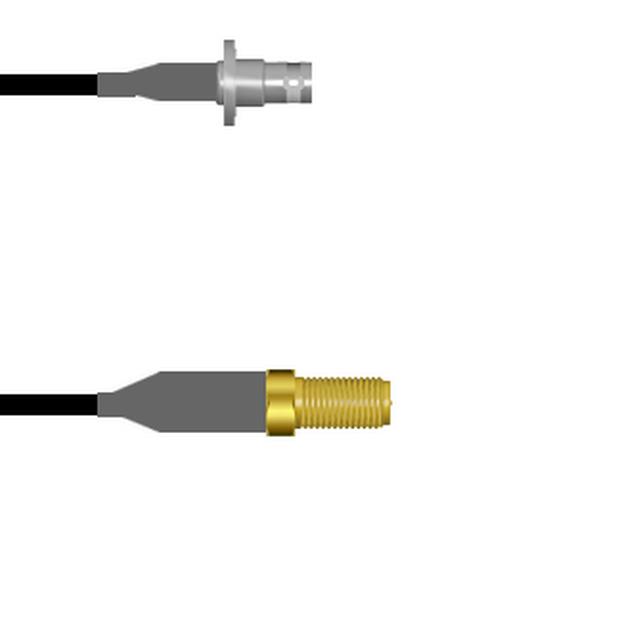

CBL ASSY RPSMA-BNC JACK-JACK 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-080720008009i

Active

Amphenol Custom Cable

CBL ASSY RPSMA-BNC JACK-JACK 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-080720008009i

1st Connector	RP-SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	BNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	RP-SMA to BNC

Q-080720 Series

Part	1st Connector Mounting Type	Length	Length	Features	2nd Connector Mounting Type	2nd Connector Mounting Feature	1st Connector	1st Contact Gender	Cable Type	2nd Connector	Frequency - Max [Max]	Color	Overall Impedance	2nd Contact Gender	Style	Length
Amphenol Custom Cable Q-080720008012i	Free Hanging (In-Line)	12 "	304.8 mm	Shielded	Panel Mount	Bulkhead - Front Side Nut	RP-SMA Jack	Male	RG-58	BNC Jack	4 GHz	Black	50 Ohms	Female	RP-SMA to BNC
Amphenol Custom Cable Q-0807200081.5M	Free Hanging (In-Line)	59.1 in	1.5 m	Shielded	Panel Mount	Bulkhead - Front Side Nut	RP-SMA Jack	Male	RG-58	BNC Jack	4 GHz	Black	50 Ohms	Female	RP-SMA to BNC	4.9 ft
Amphenol Custom Cable Q-080720008003M	Free Hanging (In-Line)	118.1 in	3 m	Shielded	Panel Mount	Bulkhead - Front Side Nut	RP-SMA Jack	Male	RG-58	BNC Jack	4 GHz	Black	50 Ohms	Female	RP-SMA to BNC	9.8 '
Amphenol Custom Cable Q-080720008001M	Free Hanging (In-Line)	39.4 in	1 m	Shielded	Panel Mount	Bulkhead - Front Side Nut	RP-SMA Jack	Male	RG-58	BNC Jack	4 GHz	Black	50 Ohms	Female	RP-SMA to BNC	3.3 ft
Amphenol Custom Cable Q-080720008084i	Free Hanging (In-Line)	84 in	2.1 m	Shielded	Panel Mount	Bulkhead - Front Side Nut	RP-SMA Jack	Male	RG-58	BNC Jack	4 GHz	Black	50 Ohms	Female	RP-SMA to BNC	7 ft
Amphenol Custom Cable Q-080720008002M	Free Hanging (In-Line)	78.7 in	2 m	Shielded	Panel Mount	Bulkhead - Front Side Nut	RP-SMA Jack	Male	RG-58	BNC Jack	4 GHz	Black	50 Ohms	Female	RP-SMA to BNC	6.6 ft
Amphenol Custom Cable Q-080720008009i	Free Hanging (In-Line)	9 "	228.6 mm	Shielded	Panel Mount	Bulkhead - Front Side Nut	RP-SMA Jack	Male	RG-58	BNC Jack	4 GHz	Black	50 Ohms	Female	RP-SMA to BNC
Amphenol Custom Cable Q-080720008006i	Free Hanging (In-Line)	6 in	152.4 mm	Shielded	Panel Mount	Bulkhead - Front Side Nut	RP-SMA Jack	Male	RG-58	BNC Jack	4 GHz	Black	50 Ohms	Female	RP-SMA to BNC
Amphenol Custom Cable Q-0807200080.5M	Free Hanging (In-Line)	19.69 "	50 cm	Shielded	Panel Mount	Bulkhead - Front Side Nut	RP-SMA Jack	Male	RG-58	BNC Jack	4 GHz	Black	50 Ohms	Female	RP-SMA to BNC
Amphenol Custom Cable Q-080720008108i	Free Hanging (In-Line)	108 in	2.7 m	Shielded	Panel Mount	Bulkhead - Front Side Nut	RP-SMA Jack	Male	RG-58	BNC Jack	4 GHz	Black	50 Ohms	Female	RP-SMA to BNC	9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 66.25
		25	$ 64.96
		50	$ 63.67
		100	$ 62.38
		250	$ 61.09

Description

General part information

Q-080720 Series

Cable Assembly Coaxial RP-SMA to BNC RG-58 9.000" (228.60mm)
