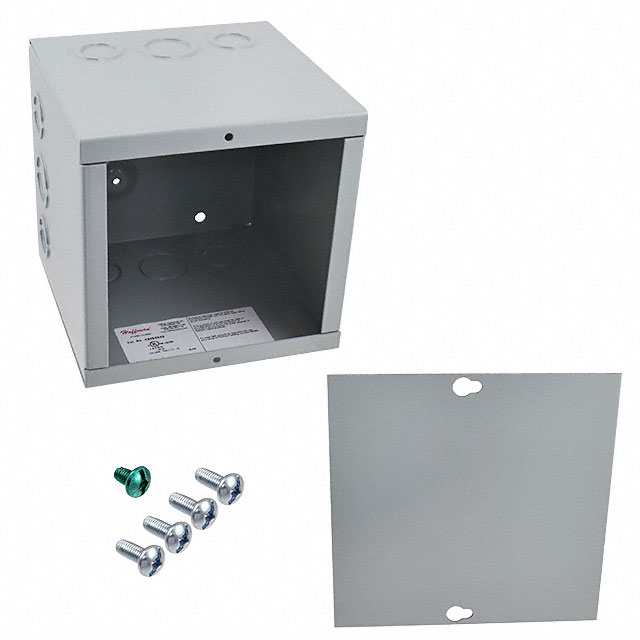

ASE6X6X6
ActiveHoffman Enclosures, Inc.
JUNCTION BOX STL 5.98"L X 5.98"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASE6X6X6
ActiveHoffman Enclosures, Inc.
JUNCTION BOX STL 5.98"L X 5.98"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASE6X6X6 |
|---|---|
| Area (L x W) | 35.8 in² |
| Area (L x W) | 231 cm² |
| Color | Gray |
| Container Type | Junction Box |
| Design | Cover Included |
| Features | Wall Mount, Knockouts |
| Height [z] | 5.984 in |
| Height [z] | 152 mm |
| Material | Metal, Steel |
| Ratings | NEMA 1, 50E, UL-50, IP30 |
| Size / Dimension [x] | 5.984 in |
| Size / Dimension [x] | 152 mm |
| Size / Dimension [y] | 5.984 in |
| Size / Dimension [y] | 152 mm |
| Weight | 4 lbs |
| Weight | 1.8 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.50 | |
| 5 | $ 35.29 | |||
| 10 | $ 33.09 | |||
| 25 | $ 30.88 | |||
| 50 | $ 30.33 | |||
| 100 | $ 29.78 | |||
| 250 | $ 29.34 | |||
Description
General part information
ASE6X6 Series
Junction Box Metal, Steel Gray Cover Included 5.984" L x 5.984" W (152.00mm x 152.00mm) X 5.984" (152.00mm)
