60-12-5791-1671

Active

Parker Chomerics

THERM PAD 17.45MMX14.28MM W/ADH

Search across all available documentation for this part.

Active

Parker Chomerics

THERM PAD 17.45MMX14.28MM W/ADH

Technical Specifications

Parameters and characteristics for this part

Part	Adhesive	Thickness	Thickness	Color	Shelf Life Start	Outline [x]	Outline [y]	Shelf Life	Backing, Carrier	Shape	Usage	Type	Thermal Conductivity	Thickness [custom]	Thickness [custom]
Parker Chomerics 60-12-5791-T441-08	Adhesive - One Side	0.008 in	0.203 mm	Pink	Date of Shipment	17.45 mm	14.28 mm	18 Months	Fiberglass	Rectangular	TO-220	Insulator Pad Sheet	1.1 W/m-K
Parker Chomerics 60-12-5791-1671	Adhesive - One Side	0.015 in	0.381 mm	White	Date of Shipment	17.45 mm	14.28 mm	18 Months	Fiberglass	Rectangular	TO-220	Insulator Pad Sheet	2.6 W/m-K
Parker Chomerics 60-12-5791-1674	Adhesive - One Side			Blue	Date of Shipment	17.45 mm	14.28 mm	12 Months	Fiberglass	Rectangular	TO-220	Insulator Pad Sheet		0.254 mm	0.01 in
Parker Chomerics 60-12-5791-T500	Adhesive - One Side			Green	Date of Shipment	17.45 mm	14.28 mm	18 Months	Fiberglass	Rectangular	TO-220	Insulator Pad Sheet	2.1 W/m-K	0.254 mm	0.01 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 2.02

General part information

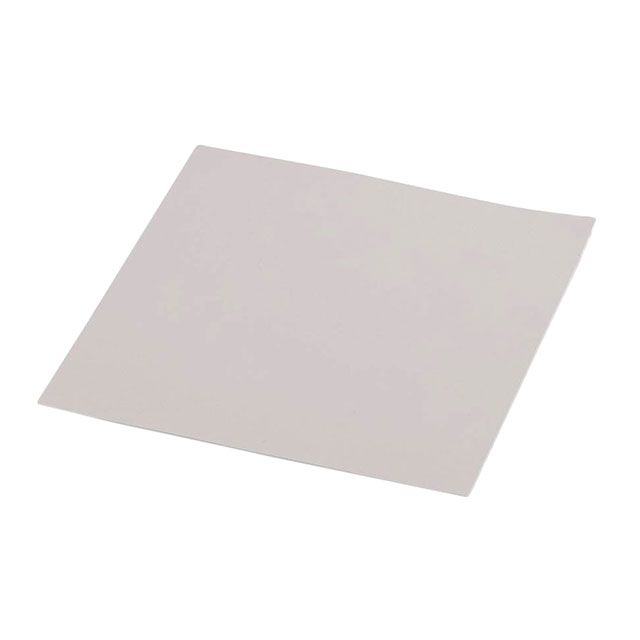

Thermal Pad White 17.45mm x 14.28mm Rectangular Adhesive - One Side

Technical documentation and resources
