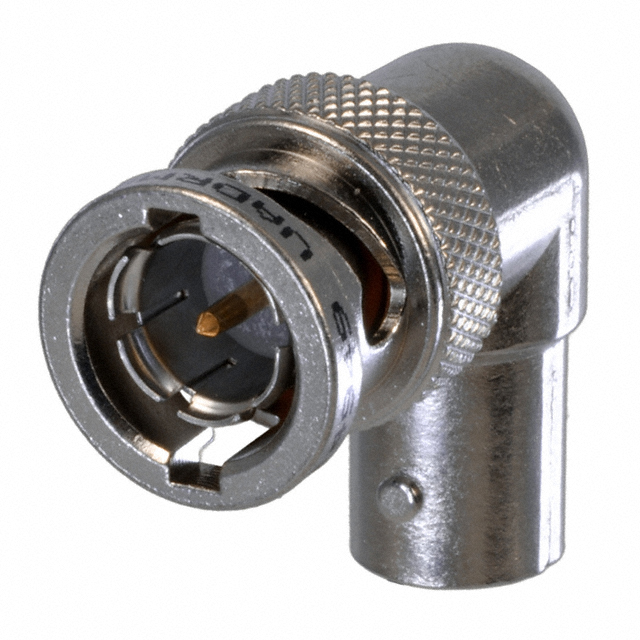

UADRMF220

Active

Cinch Connectivity Solutions Trompeter

CONN ADAPT JACK TO PLUG BNC

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN ADAPT JACK TO PLUG BNC

Technical Specifications

Parameters and characteristics for this part

Specification	UADRMF220

Adapter Series	BNC to BNC
Adapter Type	Plug to Jack
Body Finish	Nickel
Conversion Type	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	BNC Plug, Male Pin
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Impedance	75 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Style	Right Angle

Part	Center Gender	Style	Convert From (Adapter End)	Convert To (Adapter End)	Body Finish	Conversion Type	Fastening Type	Adapter Series	Mounting Type	Frequency - Max [Max]	Body Material	Adapter Type	Impedance	Center Contact Plating
Cinch Connectivity Solutions Trompeter UAD258	Female to Female	Straight	BNC Mini Jack Female Socket	BNC Mini Jack Female Socket	Nickel	Same Series	Bayonet Lock	BNC Mini Mini to BNC	Free Hanging (In-Line)	1 GHz	Brass	Jack to Jack	75 Ohms	Gold
Cinch Connectivity Solutions Trompeter UADRMF220		Right Angle	BNC Jack Female Socket	BNC Plug Male Pin	Nickel	Same Series	Bayonet Lock	BNC to BNC	Free Hanging (In-Line) Right Angle	4 GHz		Plug to Jack	75 Ohms
Cinch Connectivity Solutions Trompeter UAD228	Female to Female	Straight	BNC Jack Female Socket	BNC Jack Female Socket	Nickel	Same Series	Bayonet Lock	BNC to BNC	Free Hanging (In-Line)	4 GHz	Brass	Jack to Jack	75 Ohms	Gold
Cinch Connectivity Solutions Trompeter UAD28	Female to Female	Straight	BNC Jack Female Socket	BNC Jack Female Socket		Same Series	Bayonet Lock	BNC to BNC	Free Hanging (In-Line)	500 MHz		Jack to Jack	75 Ohms
Cinch Connectivity Solutions Trompeter UAD48	Female to Female	Straight	TNC Jack Female Socket	Female Socket TNC Jack		Same Series		TNC to TNC	Free Hanging (In-Line)			Jack to Jack	75 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Plug, Male Pin 75 Ohms
