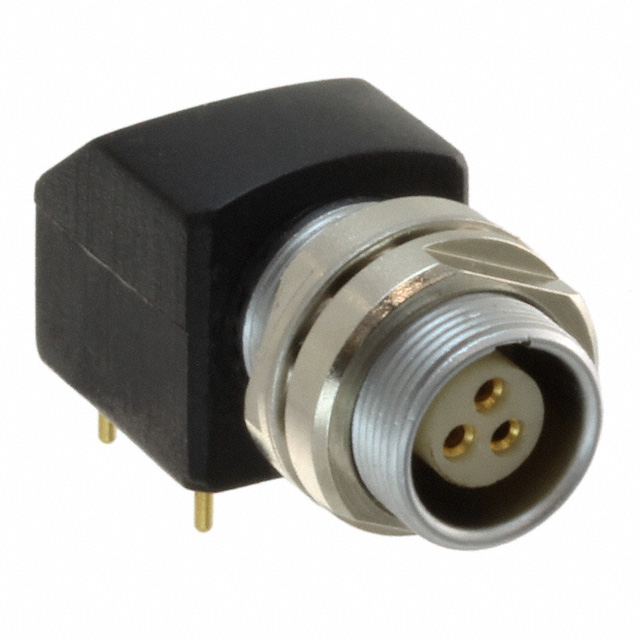

CIRCULAR CONNECTOR, QUIK-LOQ 820B SERIES, RIGHT ANGLE PANEL MOUNT RECEPTACLE, 3 CONTACTS
Deep-Dive with AI
Search across all available documentation for this part.
820BR03-213R001
ActiveMH Connectors
CIRCULAR CONNECTOR, QUIK-LOQ 820B SERIES, RIGHT ANGLE PANEL MOUNT RECEPTACLE, 3 CONTACTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 820BR03-213R001 |
|---|---|
| Applications | Testing Equipment & Measurement, Medical, Industrial, Telecommunications, Instrumentation |
| Color | Black, Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 7 µin |
| Contact Finish Thickness - Mating | 0.178 µm |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 8 A |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Ingress Protection | IP50 |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 400 V |
820B Series
| Part | Shielding | Contact Finish - Mating | Applications | Current Rating (Amps) | Insert Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Mounting Feature | Shell Finish | Connector Type | Mounting Type | Primary Material | Ingress Protection | Color | Fastening Type | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Material | Voltage Rating | Orientation | Features | Backshell Material, Plating | Number of Positions | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [diameter] | Cable Opening [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | Shielded | Gold | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | 8 A | Polyphenylene Sulfide (PPS) | 200 °C | -40 °C | Copper Alloy | Bulkhead - Front Side Nut | Nickel | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | Metal | IP50 | Silver | Push-Pull | Solder | 7 µin | 0.178 µm | Brass | 400 V | Keyed | |||||||||||||
MH Connectors | Shielded | Gold | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | 2.5 A | Polyphenylene Sulfide (PPS) | 200 °C | -40 °C | Copper Alloy | Nickel | Male Pins Plug | Free Hanging (In-Line) | Metal | IP50 | Black Silver | Push-Pull | 7 µin | 0.178 µm | Brass | 280 V | Keyed | Backshell Strain Relief | Brass Chrome | 6 | 0.098 in | 2.5 mm | 0.126 in | 3.2 mm | ||||||||
MH Connectors | Shielded | Gold | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | 10 A | Polyphenylene Sulfide (PPS) | 200 °C | -40 °C | Copper Alloy | Bulkhead - Front or Rear Side Nut | Nickel | Receptacle Female Sockets | Metal | IP50 | Silver | Push-Pull | 7 µin | 0.178 µm | Brass | 430 V | Keyed | 2 | ||||||||||||||
MH Connectors | Shielded | Gold | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | 8 A | Polyphenylene Sulfide (PPS) | 200 °C | -40 °C | Copper Alloy | Bulkhead - Front Side Nut | Nickel | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | Metal | IP50 | Black Silver | Push-Pull | Solder | 7 µin | 0.178 µm | Brass | 400 V | Keyed | Board Guide | ||||||||||||
MH Connectors | Shielded | Gold | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | 10 A | Polyphenylene Sulfide (PPS) | 200 °C | -40 °C | Copper Alloy | Nickel | Male Pins Plug | Free Hanging (In-Line) | Metal | IP50 | Black Silver | Push-Pull | 7 µin | 0.178 µm | Brass | 430 V | Keyed | Backshell Strain Relief | Brass Chrome | 2 | 5.2 mm | 0.205 in | 0.169 in | 4.3 mm | ||||||||
MH Connectors | Shielded | Gold | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | 8 A | Polyphenylene Sulfide (PPS) | 200 °C | -40 °C | Copper Alloy | Nickel | Receptacle Female Sockets | Free Hanging (In-Line) | Metal | IP50 | Black Silver | Push-Pull | 7 µin | 0.178 µm | Brass | 400 V | Keyed | Backshell Strain Relief | Brass Chrome | 3.3 mm 4.2 mm | 0.13 in 0.165 in | |||||||||||
MH Connectors | Shielded | Gold | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | 2 A | Polyphenylene Sulfide (PPS) | 200 °C | -40 °C | Copper Alloy | Nickel | Receptacle Female Sockets | Free Hanging (In-Line) | Metal | IP50 | Black Silver | Push-Pull | 7 µin | 0.178 µm | Brass | 200 V | Keyed | Backshell Strain Relief | Brass Chrome | 9 | 0.098 in | 2.5 mm | 0.126 in | 3.2 mm | ||||||||
MH Connectors | Shielded | Gold | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | 2.5 A | Polyphenylene Sulfide (PPS) | 200 °C | -40 °C | Copper Alloy | Nickel | Receptacle Female Sockets | Free Hanging (In-Line) | Metal | IP50 | Black Silver | Push-Pull | 7 µin | 0.178 µm | Brass | 260 V | Keyed | Backshell Strain Relief | Brass Chrome | 7 | 5.2 mm | 0.205 in | 0.169 in | 4.3 mm | ||||||||
MH Connectors | Shielded | Gold | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | 2 A | Polyphenylene Sulfide (PPS) | 200 °C | -40 °C | Copper Alloy | Nickel | Male Pins Plug | Free Hanging (In-Line) | Metal | IP50 | Black Silver | Push-Pull | 7 µin | 0.178 µm | Brass | 200 V | Keyed | Backshell Strain Relief | Brass Chrome | 9 | 3.3 mm 4.2 mm | 0.13 in 0.165 in | ||||||||||
MH Connectors | Shielded | Gold | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | 7 A | Polyphenylene Sulfide (PPS) | 200 °C | -40 °C | Copper Alloy | Bulkhead - Front Side Nut | Nickel | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | Metal | IP50 | Black Silver | Push-Pull | Solder | 7 µin | 0.178 µm | Brass | 280 V | Keyed | Board Guide | 4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
820B Series
The 820BR03-213R001 from Norcomp is an 820B series IP50 rated-9mm push pull female connector with 3 poles. The precision designed metal shell push-pull connector is engineered to withstand shock and high vibration both indoors and outdoors in harsh environments. The small rugged, sealed push pull connector is ideal for applications where quick connect / disconnect and environmental protection are required. This new versatile connector is fully intermateable with existing push pull industry solutions.
