28683C

Obsolete

Murata Power Solutions Inc.

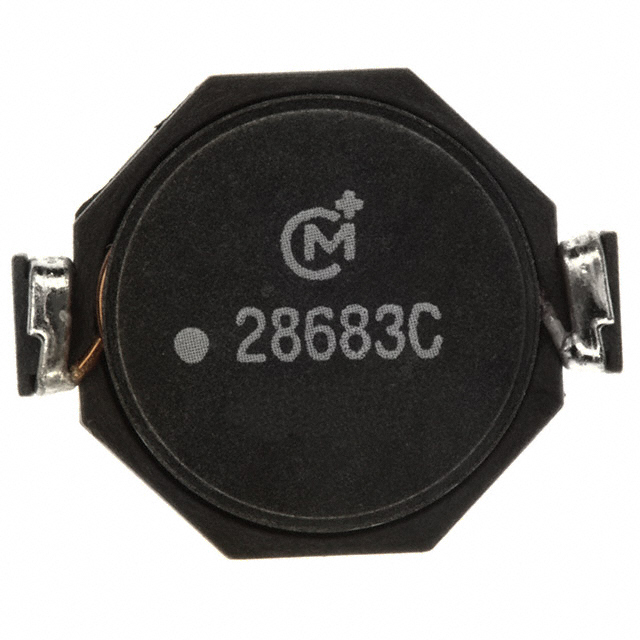

FIXED IND 68UH 2.16A 122MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPower Magnetics Selection Guide

28683C

Obsolete

Murata Power Solutions Inc.

FIXED IND 68UH 2.16A 122MOHM SMD

Deep-Dive with AI

DocumentsPower Magnetics Selection Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	28683C

Current Rating (Amps)	2.16 A
DC Resistance (DCR)	122 mOhm
Frequency - Self Resonant	8.6 MHz
Height - Seated (Max) [Max] [z]	0.299 in
Height - Seated (Max) [Max] [z]	7.6 mm
Inductance	68 µH
Inductance Frequency - Test	1 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	33.9, 1 MHz
Shielding	Unshielded
Type	Wirewound

28 Series

Part	Inductance Frequency - Test	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Q @ Freq	Type	Frequency - Self Resonant	Current Rating (Amps)	Inductance	Shielding	Mounting Type	DC Resistance (DCR)	Package / Case	DC Resistance (DCR) [Max]
Murata Power Solutions Inc. 28683C	1 MHz	125 °C	-40 °C	0.299 in	7.6 mm	1 MHz 33.9	Wirewound	8.6 MHz	2.16 A	68 µH	Unshielded	Surface Mount	122 mOhm	Nonstandard
Murata Power Solutions Inc. 28474C	800 kHz	125 °C	-40 °C	0.299 in	7.6 mm	31.7 800 kHz	Wirewound	4.3 MHz	780 mA		Unshielded	Surface Mount		Nonstandard	816 mOhm
Murata Power Solutions Inc. 28152C	10 kHz	125 °C	-40 °C	0.299 in	7.6 mm	1 MHz 43.9	Wirewound	72 MHz	12.5 Amps	1.5 µH	Unshielded	Surface Mount		Nonstandard	3.6 mOhm
Murata Power Solutions Inc. 28334C	10 kHz	125 °C	-40 °C	0.299 in	7.6 mm	30.8 800 kHz	Wirewound	5 MHz	950 mA	330 µH	Unshielded	Surface Mount		Nonstandard	575 mOhm
Murata Power Solutions Inc. 28103C	10 kHz	125 °C	-40 °C	0.299 in	7.6 mm	1 MHz 31.1	Wirewound	22.5 MHz	5.9 A	10 µH	Unshielded	Surface Mount	18 mOhm	Nonstandard
Murata Power Solutions Inc. 28153C	10 kHz	125 °C	-40 °C	0.299 in	7.6 mm	1 MHz 31	Wirewound	17.8 MHz	4.77 A	15 µH	Unshielded	Surface Mount		Nonstandard	28 mOhm
Murata Power Solutions Inc. 28335C	10 kHz	125 °C	-40 °C	0.299 in	7.6 mm	12.8 800 kHz	Wirewound		0.29 A	3300 µH	Unshielded	Surface Mount		Nonstandard	5.76 Ohm
Murata Power Solutions Inc. 28472C	1 MHz	125 °C	-40 °C	0.299 in	7.6 mm	1 MHz 33.3	Wirewound	37 MHz	8.3 A	4.7 ÁH	Unshielded	Surface Mount		Nonstandard	10 mOhm
Murata Power Solutions Inc. 28224C	10 kHz	125 °C	-40 °C	0.299 in	7.6 mm	18 800 kHz	Wirewound	5.8 MHz	1.2 A	220 µH	Unshielded	Surface Mount		Nonstandard	381 mOhm
Murata Power Solutions Inc. 28473C	1 MHz	125 °C	-40 °C	0.299 in	7.6 mm	1 MHz 31.5	Wirewound	10.4 MHz	2.66 A	47 µH	Unshielded	Surface Mount		Nonstandard	86 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

28 Series

68 µH Unshielded Wirewound Inductor 2.16 A 122mOhm Max Nonstandard

Documents

Technical documentation and resources

Power Magnetics Selection Guide

Datasheet
