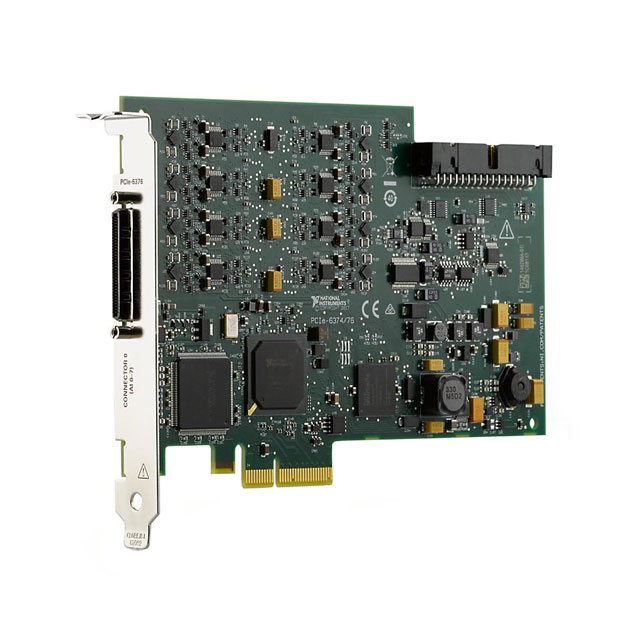

785809-01
ActiveNI
DAQ DEVICE MULTIFUNCT I/O PCIE
Deep-Dive with AI
Search across all available documentation for this part.
785809-01
ActiveNI
DAQ DEVICE MULTIFUNCT I/O PCIE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 785809-01 |
|---|---|
| Bidirectional Channels | 24 |
| Bus Connection | PCIe |
| Counter/Timers | 4 |
| Front Connection | VHDCI |
| Function | Multifunction I/O |
| Input Range | 11 V |
| Input Resolution | 16 Bits |
| Number of Inputs and Type | 8 |
| Number of Inputs and Type | Analog (Differential) |
| Number of Outputs and Type | Analog |
| Number of Outputs and Type | 2 |
| Output Range [Max] | 10 V |
| Output Range [Min] | -10 V |
| Sampling Rate (Per Second) | 3.57 M |
| Type | DAQ Device |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 5690.25 | |
Description
General part information
785809 Series
Multifunction I/O DAQ Device PCIe VHDCI
Documents
Technical documentation and resources
