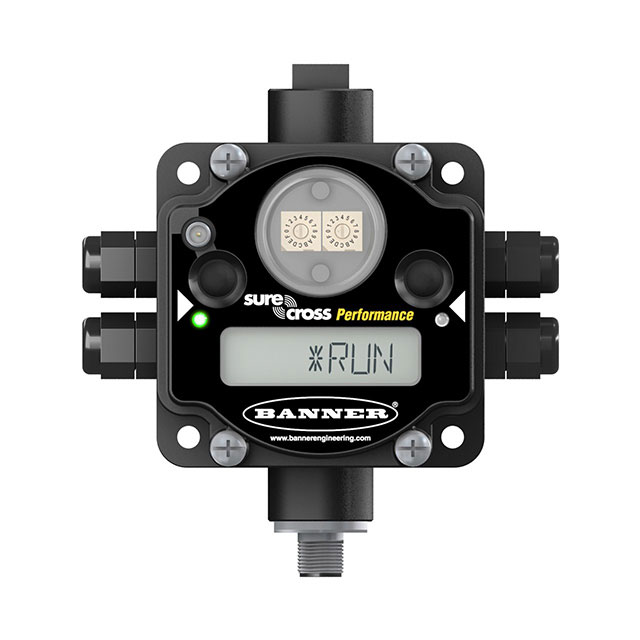

DX80DR9M-H2

Active

BANNER ENGINEERING

MULTIHOP MODBUS I/O DATA RADIO, 900MHZ

Search across all available documentation for this part.

Active

BANNER ENGINEERING

MULTIHOP MODBUS I/O DATA RADIO, 900MHZ

Technical Specifications

Parameters and characteristics for this part

Part	Function	Power - Output	Applications	Modulation or Protocol	Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Interface	Data Rate (Max)	Data Rate (Max) [Max]
BANNER ENGINEERING DX80DR9M-DCLATCHE	Switch	1 W	ISM	FHSS ISM	900 MHz	30 VDC	10 VDC	IP65
BANNER ENGINEERING DX80DR9M-HMD	Sensor	100 mW	IoT Finished Device ISM	FHSS ISM	900 MHz			IP67	RS-232 RS-485
BANNER ENGINEERING DX80DR9M-H2	Switch	36 dBm	ISM	FHSS ISM	900 MHz	30 VDC	10 VDC	IP67	RS-485	38.4 kbps
BANNER ENGINEERING DX80DR9M-H12	Switch	36 dBm	ISM	FHSS ISM	900 MHz	30 VDC	10 VDC	IP67	RS-485	38.4 kbps
BANNER ENGINEERING DX80DR9M-H	Switch	36 dBm	ISM	FHSS ISM	900 MHz	30 VDC	10 VDC	IP67	RS-232 RS-485	38.4 kbps
BANNER ENGINEERING DX80DR9M-HB2	Switch	36 dBm	ISM	FHSS ISM	900 MHz	30 VDC	10 VDC		RS-485		115.2 kbps
BANNER ENGINEERING DX80DR9M-H1C	Switch	1 W	ISM	FHSS ISM	900 MHz	30 VDC	10 VDC	IP20	RS-485

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 699.00
Newark	Each	1	$ 711.00

General part information

RF Switch 900MHz FHSS, ISM RS-485 38.4kbps
