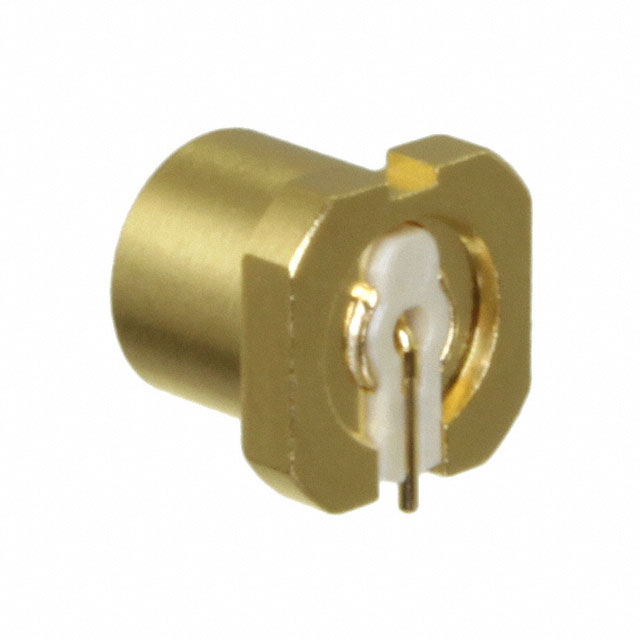

SMP-PR(SB)-SMT-1
ActiveHirose Electric USA, Inc.
CONN RCPT SMP 50 OMH 30GHZ SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMP-PR(SB)-SMT-1 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Type | Male Pin, Receptacle |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Push-Pull |
| Features | Smooth Bore |
| Frequency - Max [Max] | 30 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 1000 |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 500 | $ 7.45 | |
| 1000 | $ 6.59 | |||
| 1500 | $ 6.39 | |||
Description
General part information
SMP-P Series
SMP Connector Receptacle, Male Pin 50 Ohms Surface Mount Solder
