0923151450

Active

Molex

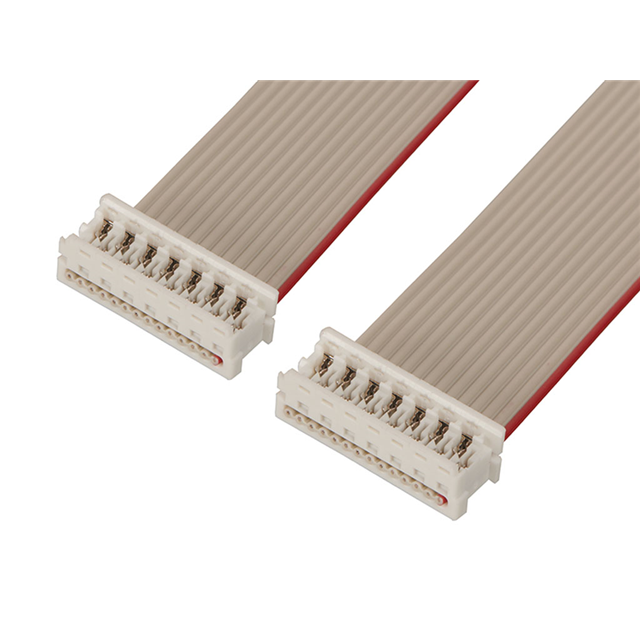

CABLE ASSEMBLY 0.5M 28AWG 1.27MM 14 TO 14 POS PICOFLEX TO PICOFLEX F-F PICOFLEX® BAG

Search across all available documentation for this part.

Active

Molex

CABLE ASSEMBLY 0.5M 28AWG 1.27MM 14 TO 14 POS PICOFLEX TO PICOFLEX F-F PICOFLEX® BAG

Technical Specifications

Parameters and characteristics for this part

Part	Cable Termination	Connector Type	Shielding	Number of Rows	Number of Positions	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Length	Length	Length	Number of Positions	Pitch - Cable [x]
Molex 923151650
Molex 923151407
Molex 0923150608	IDC	Socket to Socket	Unshielded	1	6	Tin	80 Áin	2.03 Ám	80.01 mm	0.263 '	3.15 in	0.05 in	1.27 mm	0.05 "	1.27 mm
Molex 0923151230	IDC	Socket to Socket	Unshielded	2	12	Tin	80 Áin	2.03 Ám	300 mm	0.984 '	11.81 "	0.1 in	2.54 mm	0.05 "	1.27 mm
Molex 0923151450	IDC	Socket to Socket	Unshielded	1	14	Tin	80 Áin	2.03 Ám	500 mm	1.64 ft		0.05 in	1.27 mm	0.05 "	1.27 mm
Molex 0923152622	IDC	Socket to Socket	Unshielded	2	26	Tin	80 Áin	2.03 Ám				0.1 in	2.54 mm	0.05 "	1.27 mm	8.66 in	220 mm	0.722 ft
Molex 0923151635	IDC	Socket to Socket	Unshielded	2		Tin	80 Áin	2.03 Ám				0.1 in	2.54 mm	0.05 "	1.27 mm		350 mm	1.15 ft	16
Molex 923150611	IDC	Socket to Socket	Unshielded	2	6	Tin	80 Áin	2.03 Ám	110 mm	0.361 ft	4.33 "	0.05 in	1.27 mm		0.64 mm					0.025 in
Molex 0923152011	IDC	Socket to Socket	Unshielded	2	20	Tin	80 Áin	2.03 Ám				0.1 in	2.54 mm	0.05 "	1.27 mm	4.33 "	109.98 mm	0.361 ft
Molex 923150609	IDC	Socket to Socket	Unshielded	2	6	Tin	80 Áin	2.03 Ám				0.05 in	1.27 mm		0.64 mm	3.54 in	90 mm	0.295 ft		0.025 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Cable Assembly Rectangular Socket to Socket 1.64' (500.00mm)

Technical documentation and resources

No documents available
