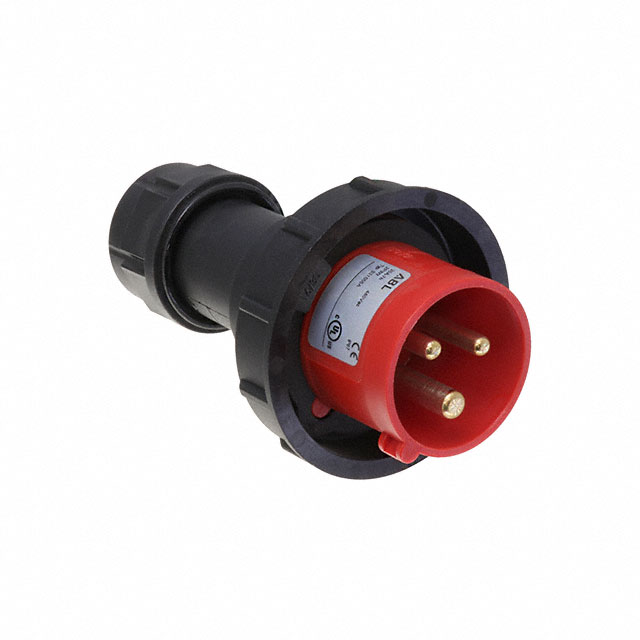

S31S55A

Active

Altech Corporation

PIN & SLEEVEPLUG 20A 480VAC 2P 3

Search across all available documentation for this part.

Active

Altech Corporation

PIN & SLEEVEPLUG 20A 480VAC 2P 3

Technical Specifications

Parameters and characteristics for this part

Specification	S31S55A

Approval Agency	cULus
Connector Style	Pin and Sleeve (2P3W)
Connector Type	Plug, Male Pins
Current Rating (Amps)	20 A
Features	Strain Relief, Impact Resistant, Chemical Resistant, Cord Grip, Push-Twist Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-2
Mounting Type	Free Hanging (In-Line)
Termination	Screw
Voltage Rating	480 VAC

Part	Approval Agency	Connector Style	Termination	Connector Type	Material Flammability Rating	Current Rating (Amps)	Ingress Protection	Voltage Rating	Mounting Type	Features
TE Connectivity Raychem Cable Protection S31S25A	cULus	Pin and Sleeve (2P3W)	Screw	Male Pins Plug	UL94 V-2	20 A	IP67 - Dust Tight Waterproof	250 VAC	Free Hanging (In-Line)	Chemical Resistant Cord Grip Impact Resistant Push-Twist Lock Strain Relief
Altech Corporation S31S25A	cULus	Pin and Sleeve (2P3W)	Screw	Male Pins Plug	UL94 V-2	20 A	IP67 - Dust Tight Waterproof	250 VAC	Free Hanging (In-Line)	Chemical Resistant Cord Grip Impact Resistant Push-Twist Lock Strain Relief
Altech Corporation S31S55A	cULus	Pin and Sleeve (2P3W)	Screw	Male Pins Plug	UL94 V-2	20 A	IP67 - Dust Tight Waterproof	480 VAC	Free Hanging (In-Line)	Chemical Resistant Cord Grip Impact Resistant Push-Twist Lock Strain Relief
TE Connectivity Raychem Cable Protection S31S10A	cULus	Pin and Sleeve (2P3W)	Screw	Male Pins Plug	UL94 V-2	20 A	IP44	120 VAC	Free Hanging (In-Line)	Chemical Resistant Cord Grip Impact Resistant Push-Twist Lock Strain Relief
Altech Corporation S31S10A	cULus	Pin and Sleeve (2P3W)	Screw	Male Pins Plug	UL94 V-2	20 A	IP44	120 VAC	Free Hanging (In-Line)	Chemical Resistant Cord Grip Impact Resistant Push-Twist Lock Strain Relief
Altech Corporation S31S15A	cULus	Pin and Sleeve (2P3W)	Screw	Male Pins Plug	UL94 V-2	20 A	IP67 - Dust Tight Waterproof	120 VAC	Free Hanging (In-Line)	Chemical Resistant Cord Grip Impact Resistant Push-Twist Lock Strain Relief

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Connector Plug, Male Pins Pin and Sleeve (2P3W) Free Hanging (In-Line)
