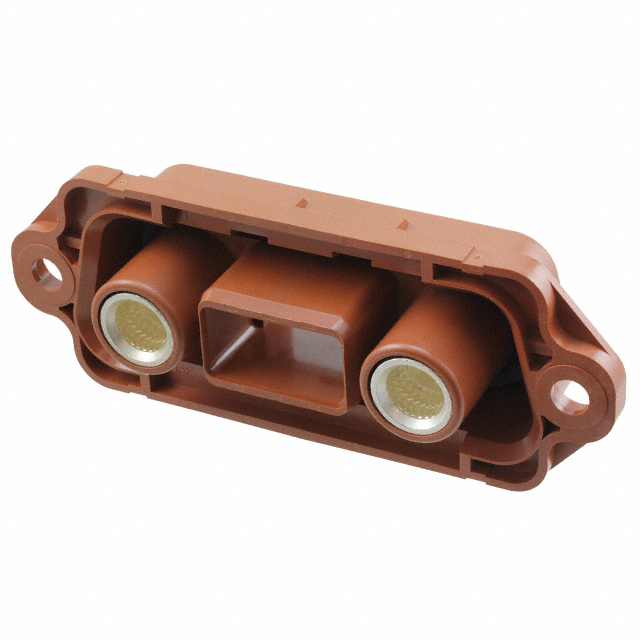

DW1R002ZH1

Active

JAE Electronics

CONN RCPT RACK & PANEL 2P PNL MT

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT RACK & PANEL 2P PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	DW1R002ZH1

Color	Brown
Connector Style	Rack and Panel
Connector Type	Receptacle, Male Pins
Contact Finish	Silver
Contact Layout, Typical	2 Power
Current Rating (Amps)	200 A
Material Flammability Rating	UL94 V-0
Number of Positions	2
Number of Positions Loaded	All
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-25 °C
Voltage Rating	600 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Connector Style	Voltage Rating	Contact Layout, Typical	Material Flammability Rating	Current Rating (Amps)	Contact Finish	Color	Connector Type	Number of Positions
JAE Electronics DW1R002ZH1	-25 °C	115 °C	All	Rack and Panel	600 V	2 Power	UL94 V-0	200 A	Silver	Brown	Male Pins Receptacle	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Connector Receptacle, Male Pins Panel Mount Brown Rack and Panel
