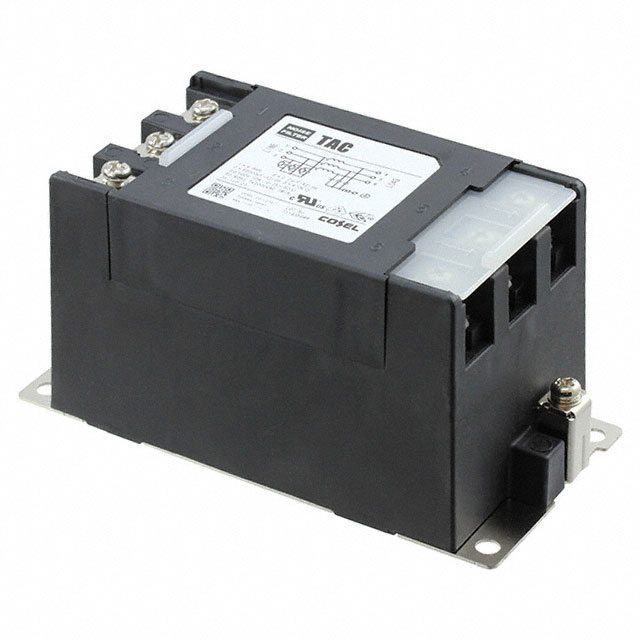

TAC-06-683
ActiveCosel USA, Inc.
THREE PHASE EMI FILTER, 500V, 60HZHZ, ROHS COMPLIANT PACKAGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TAC-06-683 |
|---|---|
| Applications | General Purpose |
| Approval Agency | cURus, VDE |
| Configuration | Single Stage |
| Current | 6 A |
| Filter Type | Three Phase (Delta) |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 69.90 | |
| 10 | $ 67.57 | |||
| 25 | $ 65.24 | |||
| 50 | $ 62.91 | |||
| 100 | $ 57.67 | |||
Description
General part information
TAC-06 Series
Three Phase (Delta) EMC/EMI Line Filter 6 A 500V 50/60Hz Single Stage Terminal Block
