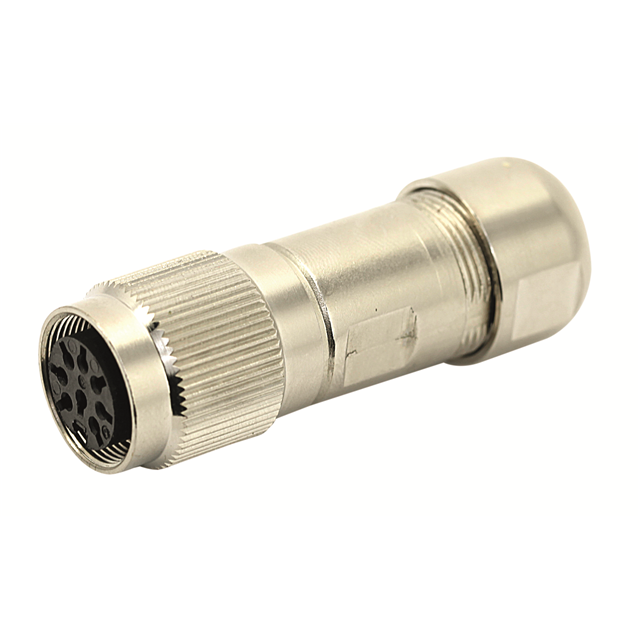

C091 31D003 100 4

Active

Amphenol Sine Systems Corp

FEMALE CABLE CONNECTOR WITH INTE

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

FEMALE CABLE CONNECTOR WITH INTE

Technical Specifications

Parameters and characteristics for this part

Specification	C091 31D003 100 4

Applications	Marine, Industrial, Medical, Instrumentation, Testing Equipment & Measurement
Cable Opening [diameter]	6 mm, 4 mm
Cable Opening [diameter]	0.236 in, 0.157 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Current Rating (Amps)	10 A
Features	Coupling Nut, Backshell
Ingress Protection	IP68, IP69K
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-3
Shielding	Shielded

Part	Shell Finish	Connector Type	Features	Shell Material	Insert Material	Current Rating (Amps)	Shielding	Ingress Protection	Primary Material	Material Flammability Rating	Applications	Orientation	Contact Finish - Mating	Cable Opening [diameter]	Cable Opening [diameter]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Mounting Type
Amphenol Sine Systems Corp C091 31D003 100 4	Nickel	Female Sockets Plug	Backshell Coupling Nut	Zinc Die Cast	Thermoplastic	10 A	Shielded	IP68 IP69K	Metal	UL94 V-0	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Keyed	Silver	4 mm 6 mm	0.157 in 0.236 in	Silver	100 °C	-40 °C	M16-3	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Position Circular Connector Plug, Female Sockets Solder Cup
