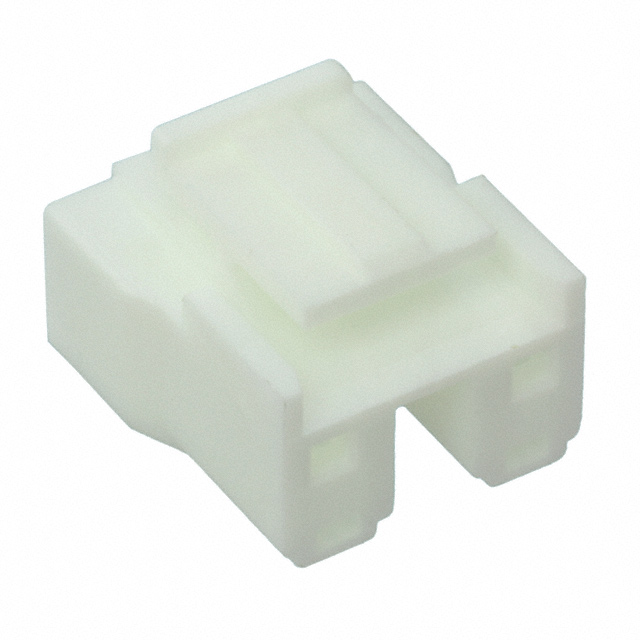

VAR-2

Active

JST Sales America Inc.

CONN RCPT HSG 2POS 7.92MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 2POS 7.92MM

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Note	Mounting Type	Insulation Material	Connector Type	Contact Termination	Number of Rows	Contact Type	Color	Number of Positions	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing [x]	Row Spacing
JST Sales America Inc. RE-05	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Receptacle	Crimp	1	Female Socket
JST Sales America Inc. VAR-2	7.92 mm	0.312 in	Contacts Not Included	Free Hanging (In-Line)	Polyamide (PA6) Nylon 6	Receptacle	Crimp	1	Female Socket	Natural	2	Latch Holder	-25 °C	85 °C
JST Sales America Inc. RF-08	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Receptacle	Crimp	2	Female Socket	Black	8				0.1 in	2.54 mm
JST Sales America Inc. RF-10	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Receptacle	Crimp	2	Female Socket	Black	10				0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle Natural 0.312" (7.92mm)
