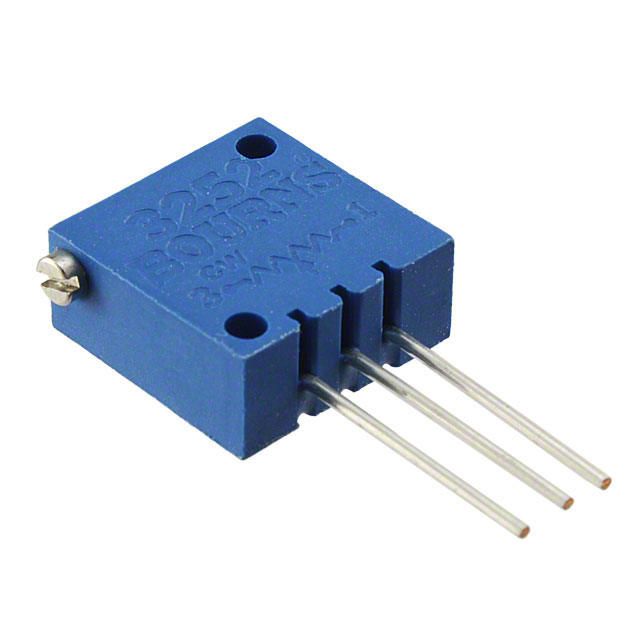

3252X-1-101MLF

Active

Bourns Inc.

TRIMMER 100OHM 0.75W PC PIN SIDE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3252X-1-101MLF

Active

Bourns Inc.

TRIMMER 100OHM 0.75W PC PIN SIDE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3252X-1-101MLF

Adjustment Type	Side Adjustment
Mounting Type	Through Hole, Panel Mount
Number of Turns	25
Power (Watts)	0.75 W
Power (Watts)	0.75 W
Resistance	100 Ohms
Resistive Material	Cermet
Size / Dimension [x]	12.7 mm
Size / Dimension [x]	0.5 in
Size / Dimension [y]	0.22 "
Size / Dimension [y]	5.59 mm
Temperature Coefficient	100 ppm/°C
Termination Style	PC Pins
Tolerance	10 %

3252X Series

Part	Tolerance	Temperature Coefficient	Resistance	Termination Style	Number of Turns	Resistive Material	Power (Watts)	Power (Watts)	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Adjustment Type
Bourns Inc. 3252X-1-102MLF	10 %	100 ppm/°C	1000 Ohms	PC Pins	25	Cermet	0.75 W	0.75 W	Panel Mount Through Hole	0.22 "	5.59 mm	12.7 mm	0.5 in	Side Adjustment
Bourns Inc. 3252X-1-501LF	10 %	100 ppm/°C	500 Ohms	PC Pins	25	Cermet	0.75 W	0.75 W	Chassis Mount	0.22 "	5.59 mm	12.7 mm	0.5 in	Side Adjustment
Bourns Inc. 3252X-1-253LF	10 %	100 ppm/°C	25 kOhms	PC Pins	25	Cermet	0.75 W	0.75 W	Chassis Mount	0.22 "	5.59 mm	12.7 mm	0.5 in	Side Adjustment
Bourns Inc. 3252X-1-503LF	10 %	100 ppm/°C	50 kOhms	PC Pins	25	Cermet	0.75 W	0.75 W	Chassis Mount	0.22 "	5.59 mm	12.7 mm	0.5 in	Side Adjustment
Bourns Inc. 3252X-1-204LF	10 %	100 ppm/°C	200000 Ohms	PC Pins	25	Cermet	0.75 W	0.75 W	Chassis Mount	0.22 "	5.59 mm	12.7 mm	0.5 in	Side Adjustment
Bourns Inc. 3252X-1-101MLF	10 %	100 ppm/°C	100 Ohms	PC Pins	25	Cermet	0.75 W	0.75 W	Panel Mount Through Hole	0.22 "	5.59 mm	12.7 mm	0.5 in	Side Adjustment
Bourns Inc. 3252X-1-203LF	10 %	100 ppm/°C	20 kOhms	PC Pins	25	Cermet	0.75 W	0.75 W	Chassis Mount	0.22 "	5.59 mm	12.7 mm	0.5 in	Side Adjustment
Bourns Inc. 3252X-1-104M	10 %	100 ppm/°C	100 kOhms	PC Pins	25	Cermet	0.75 W	0.75 W	Panel Mount Through Hole	0.22 "	5.59 mm	12.7 mm	0.5 in	Side Adjustment
Bourns Inc. 3252X-1-502LF	10 %	100 ppm/°C	5 kOhms	PC Pins	25	Cermet	0.75 W	0.75 W	Chassis Mount	0.22 "	5.59 mm	12.7 mm	0.5 in	Side Adjustment
Bourns Inc. 3252X-1-205LF	10 %	100 ppm/°C	2 MOhms	PC Pins	25	Cermet	0.75 W	0.75 W	Chassis Mount	0.22 "	5.59 mm	12.7 mm	0.5 in	Side Adjustment

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	100	$ 16.72

Description

General part information

3252X Series

100 Ohms 0.75W, 3/4W PC Pins Panel Mount, Through Hole Trimmer Potentiometer Cermet 25.0 Turn Side Adjustment
