908-41500

Active

Amphenol RF

RF / COAXIAL CONNECTOR, MMCX COAXIAL, STRAIGHT PLUG, SOLDER, 50 OHM, RG316DB, BRASS

Search across all available documentation for this part.

Active

Amphenol RF

RF / COAXIAL CONNECTOR, MMCX COAXIAL, STRAIGHT PLUG, SOLDER, 50 OHM, RG316DB, BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	908-41500

Body Finish	Gold
Body Material	Brass
Cable Group	RG-179, M17/152-RD316, 316 Double Braid, 188
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms

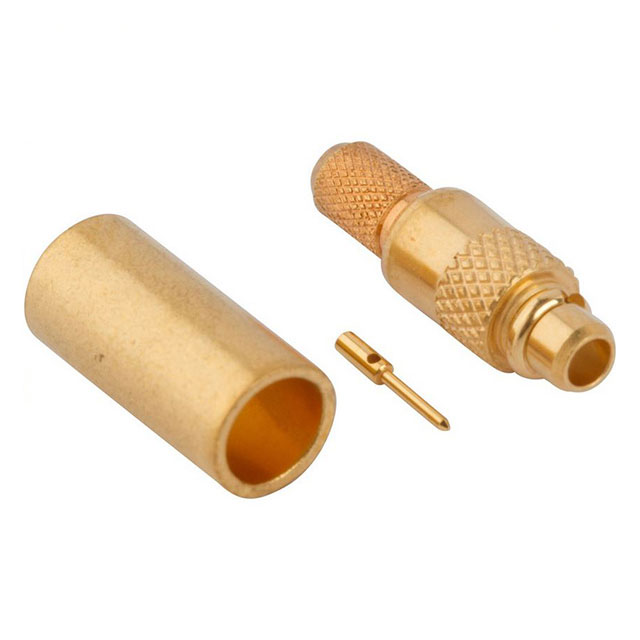

Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp

Part	Fastening Type	Center Contact Material	Mating Cycles	Frequency - Max [Max]	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Number of Ports	Includes	Connector Style	Body Material	Body Finish	Impedance	Center Contact Plating	Dielectric Material	Mounting Type	Housing Color	Contact Termination	Connector Type	Cable Group [Min]	Cable Group [Max]
Amphenol RF 908-41300	Snap-On	Brass	500	6000 MHz	188 188A 316 LMR-100 M17/119-RG174 RG-174	-65 ░C	165 °C	Crimp	1	1 Connector 1 Contact 1 Ferrule	MMCX	Brass	Gold	50 Ohms	Gold	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Gold	Solder	Male Pin Plug
Amphenol RF 908-41400	Snap-On	Brass	500	6000 MHz	RG-405 Semi Rigid	-65 ░C	165 °C	Solder	1		MMCX	Brass	Gold	50 Ohms	Gold	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Gold	Solder	Male Pin Plug	0.085 in	0.086 in
Amphenol RF 908-41500	Snap-On	Brass	500	6000 MHz	188 316 Double Braid M17/152-RD316 RG-179			Crimp	1	1 Connector 1 Contact 1 Ferrule	MMCX	Brass	Gold	50 Ohms	Gold	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Gold	Solder	Male Pin Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MMCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
