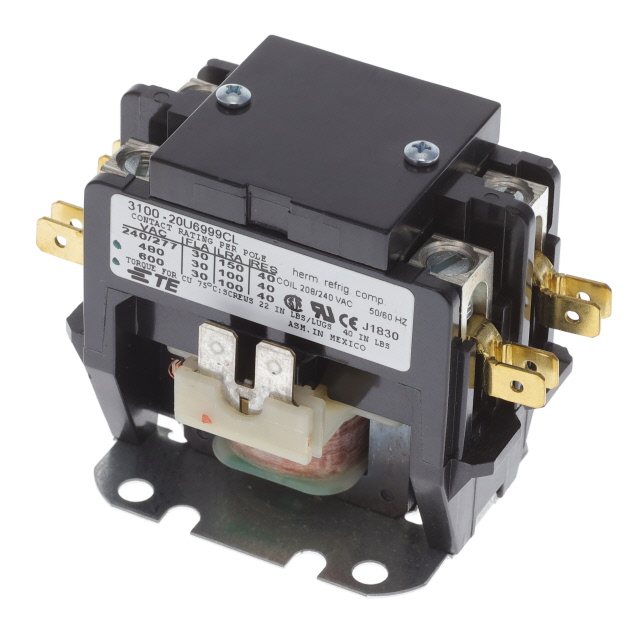

3100-20U6999CL

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY CONTACTOR DPST 30A 240V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY CONTACTOR DPST 30A 240V

Technical Specifications

Parameters and characteristics for this part

Specification	3100-20U6999CL

Coil Power	7 VA
Coil Resistance	1 kOhms
Coil Voltage	240 VAC
Contact Form	DPST-NO (DM) (2 Form X)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	30 A
Features	Insulation - Class B
Mounting Type	Chassis Mount
Must Operate Voltage	177 VAC
Must Release Voltage	40 VAC
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-40 °C
Switching Voltage	600 VAC
Termination Style	Screw Terminal, Quick Connect
Termination Style	0.25 in

Part	Termination Style	Termination Style	Coil Resistance	Coil Voltage	Mounting Type	Contact Material	Features	Must Operate Voltage	Must Release Voltage	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage	Contact Form	Coil Power
TE Connectivity Potter & Brumfield Relays 3100-20U6999CL	Quick Connect Screw Terminal	0.25 in	1 kOhms	240 VAC	Chassis Mount	Silver Cadmium Oxide (AgCdO)	Insulation - Class B	177 VAC	40 VAC	30 A	65 °C	-40 °C	600 VAC	DPST-NO (DM) (2 Form X)	7 VA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY CONTACTOR DPST 30A 240V
