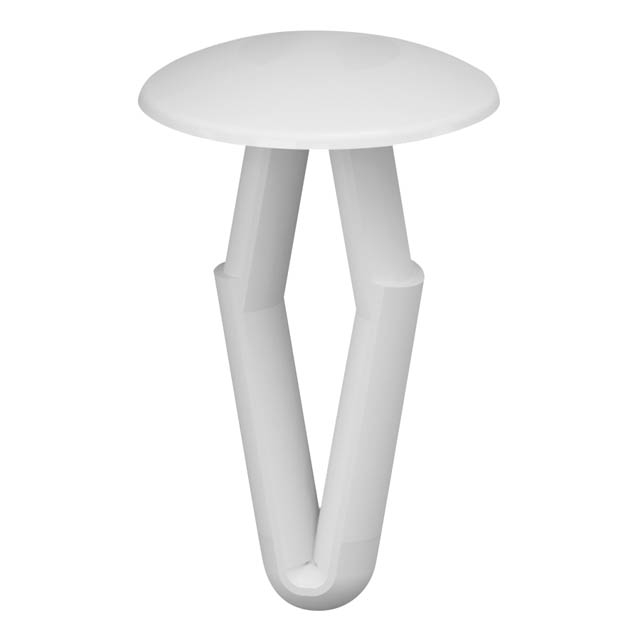

DFVO-137-031

Active

Essentra Access Solutions

MOUNTING BUTTON 0.590" NYLN NRTL

Search across all available documentation for this part.

Active

Essentra Access Solutions

MOUNTING BUTTON 0.590" NYLN NRTL

Technical Specifications

Parameters and characteristics for this part

Part	Features	Rivet Length	Rivet Length	Head Height [z]	Head Height [z]	Material	Color	Head Diameter [diameter]	Head Diameter [diameter]	Rivet Diameter [diameter]	Rivet Diameter [diameter]	Grip Range [Min]	Grip Range [Max]	Grip Range [Min]	Grip Range [Max]	Type	Hole Diameter [diameter]	Hole Diameter [diameter]	Grip Range [Min] [diameter]	Grip Range [Max] [diameter]	Grip Range [Max] [diameter]	Grip Range [Min] [diameter]	Rivet Diameter	Rivet Diameter	Head Height	Head Height	Grip Range [Max] [diameter]
Essentra Access Solutions DFVO-137-050	Flame Retardant	0.748 in	19 mm	2.21 mm	0.087 in	Nylon	Natural	14 mm	0.551 "	0.166 in	4.22 mm	0.059 "	0.275 "	1.5 mm	6.99 mm	Mounting Button	7.8 mm	0.307 in
Essentra Access Solutions DFVO-137-031	Flame Retardant	0.59 in	14.99 mm			Nylon	Natural	11 mm	0.433 in							Mounting Button	4.7 mm	0.185 in	0.039 "	0.216 "	5.49 mm	0.99 mm	3.4 mm	0.134 in	2.9 mm	0.114 in
Essentra Access Solutions DFVO-137-040	Flame Retardant	0.669 "	16.99 mm			Nylon	Natural	11.99 mm	0.472 in	0.153 in	3.89 mm					Mounting Button	6.4 mm	0.252 in	0.059 "	0.256 "		1.5 mm			2.01 mm	0.079 in	6.5 mm
Essentra Access Solutions DFVO-137-010	Flame Retardant	0.512 in	13 mm	1.5 mm	0.059 "	Nylon	Natural			0.106 in	2.69 mm					Mounting Button	3.2 mm	0.126 in	0.039 "	0.177 "		0.99 mm					4.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.134" (3.40mm) Mounting Button 0.039" ~ 0.216" (0.99mm ~ 5.49mm) Grip Range Nylon
