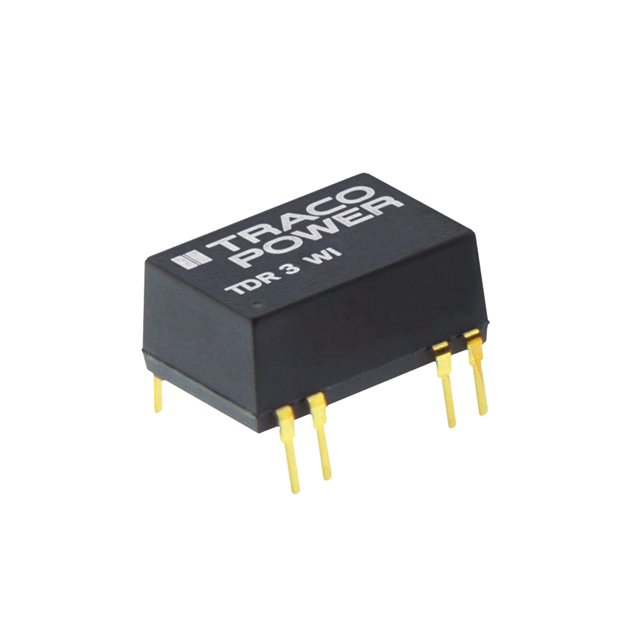

TDR 3-1212WI

Active

Traco Power

DC DC CONVERTER 12V 3W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTDR 3WI Certs Datasheet

TDR 3-1212WI

Active

Traco Power

DC DC CONVERTER 12V 3W

Deep-Dive with AI

DocumentsTDR 3WI Certs Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TDR 3-1212WI

Applications	ITE (Commercial)
Current - Output (Max) [Max]	250 mA
Features	Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-DIP Module, 7 Leads
Power (Watts)	3 W
Size / Dimension [x]	18.9 mm
Size / Dimension [x]	0.74 in
Size / Dimension [y]	12.8 mm
Size / Dimension [y]	0.5 in
Size / Dimension [z]	8.7 mm
Size / Dimension [z]	0.34 in
Type	Isolated Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	12 V

TDR 3 Series

Part	Applications	Features	Voltage - Isolation	Type	Current - Output (Max) [Max]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1	Package / Case	Mounting Type	Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Efficiency	Current - Output (Max)
Traco Power TDR 3-2412SM	ITE (Commercial)	Remote On/Off SCP	1.6 kV	Isolated Module	250 mA	3 W	85 °C	-40 °C	1	18 V	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	12 V	14-SMD Module 7 Leads	Surface Mount	36 V
Traco Power TDR 3-2422	ITE (Commercial)	Remote On/Off SCP	1.6 kV	Isolated Module		3 W	85 °C	-40 °C	2	18 V	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	12 V	14-DIP Module 7 Leads	Through Hole	36 V	125 mA	125 mA	-12 V	83 %
Traco Power TDR 3-1211	ITE (Commercial)	Remote On/Off SCP	1.6 kV	Isolated Module	600 mA	3 W	85 °C	-40 °C	1	9 V	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	5 V	14-DIP Module 7 Leads	Through Hole	18 V				81 %
Traco Power TDR 3-0512	ITE (Commercial)	Remote On/Off SCP	1.6 kV	Isolated Module	250 mA	3 W	85 °C	-40 °C	1	4.5 V	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	12 V	14-DIP Module 7 Leads	Through Hole	9 V				80 %
Traco Power TDR 3-2422SM	ITE (Commercial)	Remote On/Off SCP	1.6 kV	Isolated Module		3 W	85 °C	-40 °C	2	18 V	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	12 V	14-SMD Module 7 Leads	Surface Mount	36 V	125 mA	125 mA	-12 V	83 %
Traco Power TDR 3-0511SM	ITE (Commercial)	Remote On/Off SCP	1.6 kV	Isolated Module	600 mA	3 W	85 °C	-40 °C	1	4.5 V	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	5 V	14-SMD Module 7 Leads	Surface Mount	9 V				79 %
Traco Power TDR 3-0523SM	ITE (Commercial)	Remote On/Off SCP	1.6 kV	Isolated Module		3 W	85 °C	-40 °C	2	4.5 V	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	15 V	14-SMD Module 7 Leads	Surface Mount	9 V	100 mA		-15 V	81 %	100 mA
Traco Power TDR 3-1212WI	ITE (Commercial)	Remote On/Off SCP	1.6 kV	Isolated Module	250 mA	3 W	85 °C	-40 °C	1	4.5 V	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	12 V	14-DIP Module 7 Leads	Through Hole	18 V
Traco Power TDR 3-2423WISM	ITE (Commercial)	Remote On/Off SCP	1.6 kV	Isolated Module		3 W	85 °C	-40 °C	2	9 V	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	15 V	14-SMD Module 7 Leads	Surface Mount	36 V	100 mA		-15 V	81 %	100 mA
Traco Power TDR 3-4823WI	ITE (Commercial)	Remote On/Off SCP	1.6 kV	Isolated Module		3 W	85 °C	-40 °C	2	18 V	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	15 V	14-DIP Module 7 Leads	Through Hole	75 V	100 mA		-15 V	81 %	100 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 36.80
		10	$ 32.07
		25	$ 31.01
		50	$ 30.24
		100	$ 29.48
		250	$ 28.51
		500	$ 25.38
