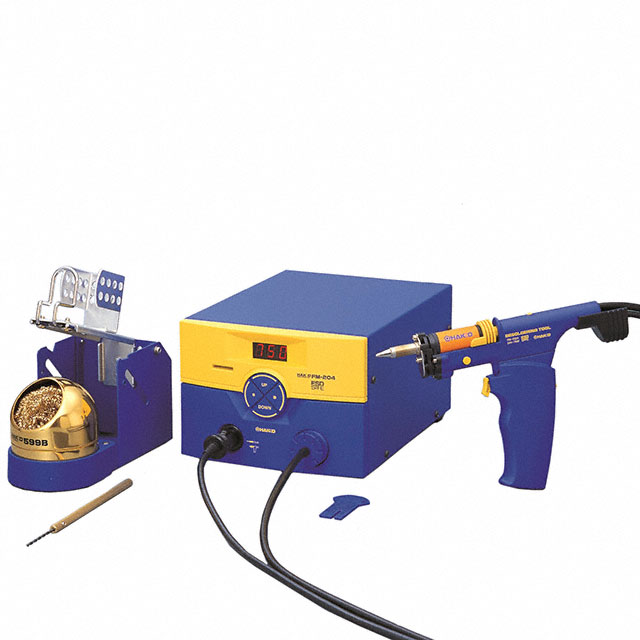

FM204-01

Active

American Hakko Products, Inc.

DESOLDER SLDR STA 120W 1 CH 120V

Search across all available documentation for this part.

Active

American Hakko Products, Inc.

DESOLDER SLDR STA 120W 1 CH 120V

Technical Specifications

Parameters and characteristics for this part

Specification	FM204-01

Base Unit	FM-204
Control/Display Type	Digital
Features	Sleep Mode, Quick Change Nozzle, Configurable Handpiece, Internal Vacuum Pump
Includes	Iron Holder, Filter Pipe Assembly (10), Key Card, Nozzle Remover, Ceramic Filter (10), Heat Resistant Pad, Cleaning Drill
Number of Channels	1
Plug Type	NEMA 5-15P
Supplied Iron, Tweezer, Handle	B2872, FM-2024-02
Supplied Tips/Nozzles	Sold Separately
Tip Cleaner	Scouring Pad
Type	Soldering, Desoldering
Voltage - Input	120 V
Voltage - Output	24 V
Wattage	120 W
Workstand	FH200-05

Part	Tip Cleaner	Workstand	Control/Display Type	Includes	Wattage	Supplied Iron, Tweezer, Handle	Voltage - Output	Base Unit	Voltage - Input	Plug Type	Number of Channels	Supplied Tips/Nozzles	Type	Features
American Hakko Products, Inc. FM204-01	Scouring Pad	FH200-05	Digital	Ceramic Filter (10) Cleaning Drill Filter Pipe Assembly (10) Heat Resistant Pad Iron Holder Key Card Nozzle Remover	120 W	B2872 FM-2024-02	24 V	FM-204	120 V	NEMA 5-15P	1	Sold Separately	Desoldering Soldering	Configurable Handpiece Internal Vacuum Pump Quick Change Nozzle Sleep Mode

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DESOLDER SLDR STA 120W 1 CH 120V
