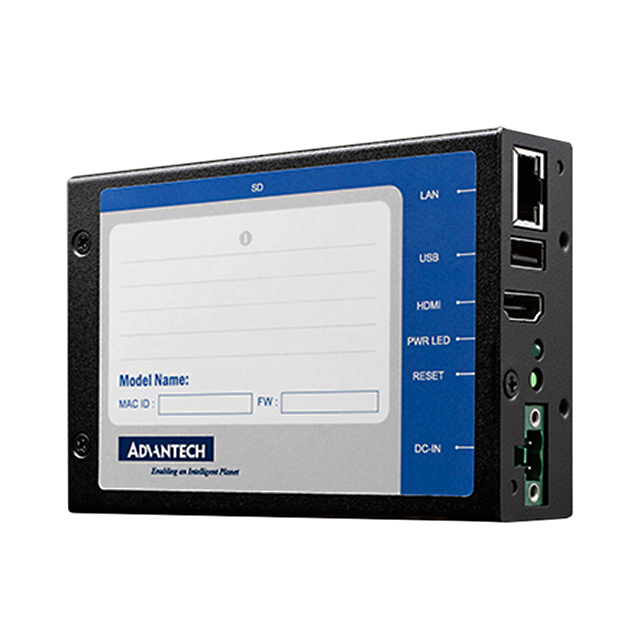

UBC-200CD-MDA1E
ActiveAdvantech Corp
DEVELOPMENT BOARDS & KITS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UBC-200CD-MDA1E
ActiveAdvantech Corp
DEVELOPMENT BOARDS & KITS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UBC-200CD-MDA1E |
|---|---|
| Cooling Type | Heat Sink |
| Core Processor | ARM Cortex-A9, i.MX6DualLite |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Expansion Site/Bus | SIM, mPCIe, SD |
| Number of Cores | 2 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 3.16 W |
| RAM Capacity/Installed | 1GB/1GB |
| Size / Dimension [x] | 4.37 in |
| Size / Dimension [x] | 110.99 mm |
| Size / Dimension [y] | 3.03 in |
| Size / Dimension [y] | 76.96 mm |
| Speed | 1 GHz |
| Storage Interface | SDIO |
| USB | USB 2.0 (1) |
| Video Outputs | HDMI |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
UBC-200 Series
Single Board Computer 1.0GHz 2 Core 1GB/1GB RAM ARM Cortex-A9, i.MX6DualLite
