7032-7845

Active

Amphenol SV Microwave

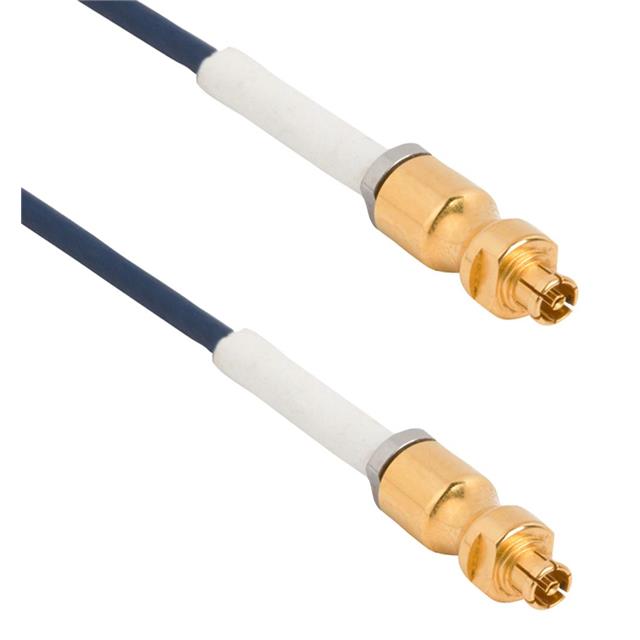

CBL ASSY SMPM JACK TO JACK 6"

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CBL ASSY SMPM JACK TO JACK 6"

Technical Specifications

Parameters and characteristics for this part

Part	Style	Cable Type	Overall Impedance	2nd Connector	2nd Connector Mounting Type	1st Connector	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	1st Connector Mounting Type	Frequency - Max [Max]	1st Contact Gender	2nd Contact Gender	Features	Color	Cable Impedance
Amphenol SV Microwave 7032-7846	SMPM to SMPM	0.047" Flexible Cable	50 Ohms	SMPM Jack	Free Hanging (In-Line)	SMPM Jack	-65 ░C	165 °C	12 "	304.8 mm	Free Hanging (In-Line)	33 GHz	Female	Female	Shielded	Blue
Amphenol SV Microwave 7032-7845	SMPM to SMPM	0.047" Flexible Cable	50 Ohms	SMPM Jack	Free Hanging (In-Line)	SMPM Jack	-65 ░C	165 °C	6 in	152.4 mm	Free Hanging (In-Line)	33 GHz	Female	Female	Shielded	Blue
Amphenol SV Microwave 7032-7821	SMA to SMPM	0.047" Flexible Cable	50 Ohms	SMA Plug	Free Hanging (In-Line)	SMPM Jack	-65 ░C	165 °C	6 in	152.4 mm	Free Hanging (In-Line)	26.5 GHz	Female	Male	Shielded	Blue
Amphenol SV Microwave 7032-7840	SMA to SMPM	TFlex-405	50 Ohms	SMPM Plug	Free Hanging (In-Line)	SMA Plug	-65 ░C	165 °C	12 "	304.8 mm	Free Hanging (In-Line)	18 GHz	Male	Male	Shielded	Blue	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 268.38

General part information

Cable Assembly Coaxial SMPM to SMPM 0.047" Flexible Cable 6.000" (152.40mm)
