AFB1224HE-R00

Active

Delta Electronics

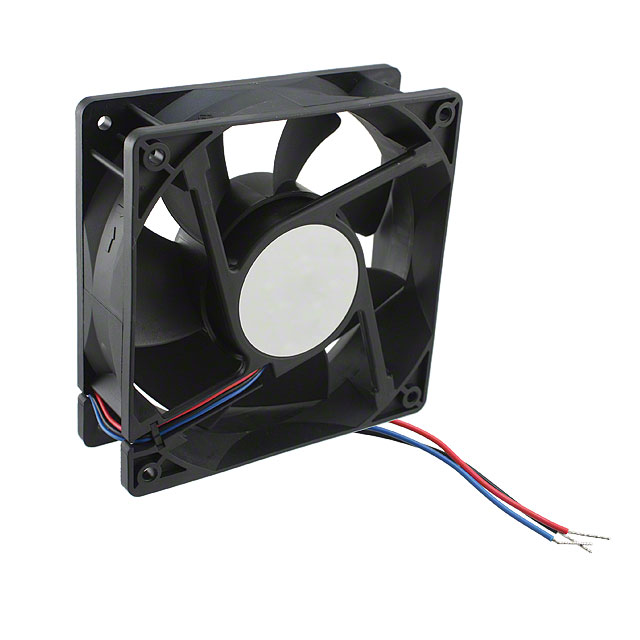

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans VDE Cert Fans, Blowers CSA Cert +2

AFB1224HE-R00

Active

Delta Electronics

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsFans VDE Cert Fans, Blowers CSA Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AFB1224HE-R00

Air Flow	2.97 mł/min
Air Flow	105.9 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.24 A
Fan Type	Tubeaxial
Features	Locked Rotor Sensor
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	41 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
RPM	2600 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	74.7 Pa
Static Pressure	0.3 in H2O
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	7 V
Weight	256.28 g
Weight	0.565 lb
Width [y]	38 mm

AFB1224 Series

Part	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]	RPM	Termination	Voltage - Rated	Material - Blade	Features	Material - Frame	Power (Watts)	Width [y]	Approval Agency	Current Rating (Amps)	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Fan Type	Bearing Type	Noise	Air Flow
Delta Electronics AFB1224SH-R00	3.17 m³/min	113.1 CFM	120 mm	120 mm	3400 RPM	3 Wire Leads	24 VDC	Plastic	Locked Rotor Sensor	Plastic	6.72 W	25.4 mm	CE CSA UL VDE	0.28 A	70000 Hrs	27.6 VDC	14 VDC	107.1 Pa	0.43 in H2O	198 g	0.437 lb	-10 °C	-10 °C	60 °C	60 °C	Tubeaxial	Ball	46.5 dB
Delta Electronics AFB1224HE	2.97 mł/min	105.9 CFM	120 mm	120 mm	2600 RPM	2 Wire Leads	24 VDC	Plastic		Plastic		38 mm	CE CSA UL VDE	0.24 A	70000 Hrs	27.6 VDC	7 V	74.7 Pa	0.3 in H2O	256.28 g	0.565 lb	-10 °C	-10 °C	60 °C	60 °C	Tubeaxial	Ball	41 dB
Delta Electronics AFB1224VHE-R00	3.64 m³/min	130 CFM	120 mm	120 mm	3200 RPM	3 Wire Leads	24 VDC	Plastic	Locked Rotor Sensor	Plastic	9.12 W	38 mm	CE CSA UL VDE		70000 Hrs	27.6 VDC	7 V	104.6 Pa	0.42 in H2O	256.28 g	0.565 lb	-10 °C	-10 °C	60 °C	60 °C	Tubeaxial	Ball	48 dB
Delta Electronics AFB1224SHE-F00	4.25 m³/min	151.9 CFM	120 mm	120 mm	3700 RPM	3 Wire Leads	24 VDC	Plastic	Locked Rotor Protection Speed Sensor (Tach)	Plastic	12 W	38 mm	CE CSA UL VDE	0.5 A	70000 Hrs	27.6 VDC	7 V	142.2 Pa	0.571 in H2O	256.28 g	0.565 lb	-10 °C	-10 °C	60 °C	60 °C	Tubeaxial	Ball	53 dB
Delta Electronics AFB1224HHE-T6M3	3.36 m³/min	120.1 CFM	120 mm	120 mm	2900 RPM	2 Wire Leads	24 VDC	Plastic		Plastic	7.2 W	38 mm	CE CSA UL VDE		70000 Hrs	27.6 VDC	7 V	88.2 Pa	0.354 in H2O	256.28 g	0.565 lb	-10 °C	-10 °C	60 °C	60 °C	Tubeaxial	Ball	44 dB
Delta Electronics AFB1224HE-CR00	3.06 m³/min		120 mm	120 mm	3000 RPM	3 Wire Leads	24 VDC	Plastic	Locked Rotor Sensor	Plastic	4.8 W	38 mm	CE CSA UL VDE	0.2 A	70000 Hrs	27.6 VDC	14 VDC	90.5 Pa	0.363 in H2O	326.13 g	0.719 lb	-10 °C	-10 °C	70 °C	70 °C	Tubeaxial	Ball	44 dB	109.2 CFM
Delta Electronics AFB1224HH-F00	2.66 m³/min	95.1 CFM	120 mm	120 mm	2800 RPM	3 Wire Leads	24 VDC	Plastic	Locked Rotor Protection Speed Sensor (Tach)	Plastic	4.32 W	25.4 mm	CE CSA UL VDE	0.18 A	70000 Hrs	27.6 VDC	14 VDC	75.7 Pa	0.304 in H2O	198 g	0.437 lb	-10 °C	-10 °C	60 °C	60 °C	Tubeaxial	Ball	41.5 dB
Delta Electronics AFB1224HE-R00	2.97 mł/min	105.9 CFM	120 mm	120 mm	2600 RPM	3 Wire Leads	24 VDC	Plastic	Locked Rotor Sensor	Plastic		38 mm	CE CSA UL VDE	0.24 A	70000 Hrs	27.6 VDC	7 V	74.7 Pa	0.3 in H2O	256.28 g	0.565 lb	-10 °C	-10 °C	60 °C	60 °C	Tubeaxial	Ball	41 dB
Delta Electronics AFB1224HHE-R00	3.36 m³/min	120.1 CFM	120 mm	120 mm	2900 RPM	3 Wire Leads	24 VDC	Plastic	Locked Rotor Sensor	Plastic	7.2 W	38 mm	CE CSA UL VDE		70000 Hrs	27.6 VDC	7 V	88.2 Pa	0.354 in H2O	256.28 g	0.565 lb	-10 °C	-10 °C	60 °C	60 °C	Tubeaxial	Ball	44 dB
Delta Electronics AFB1224EHE-CF00	5.95 m³/min	212.6 CFM	120 mm	120 mm	4600 RPM	3 Wire Leads	24 VDC	Plastic	Locked Rotor Protection Speed Sensor (Tach)	Plastic	20.4 W	38 mm	CE CSA UL VDE	0.85 A	70000 Hrs	28 VDC	14 VDC	210.2 Pa	0.844 in H2O	330.22 g	0.728 lb	-10 °C	-10 °C	70 °C	70 °C	Tubeaxial	Ball	58.5 dB
