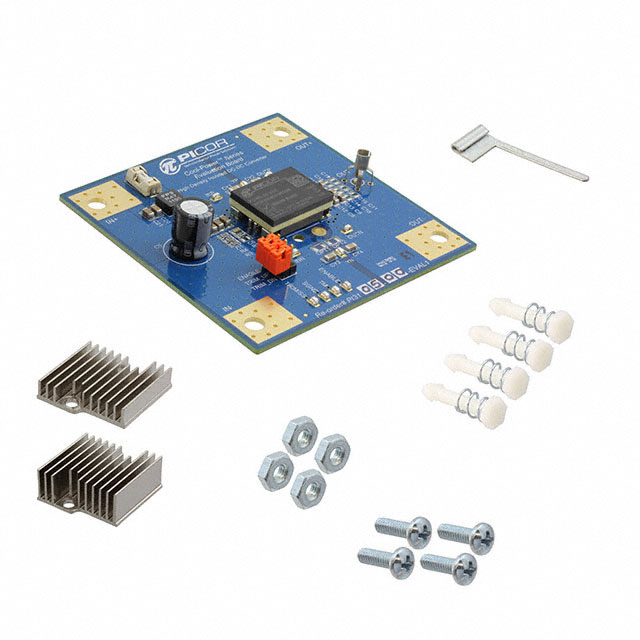

PI3105-00 EVALUATION BOARD

Search across all available documentation for this part.

Obsolete

Vicor Corporation

PI3105-00 EVALUATION BOARD

Technical Specifications

Parameters and characteristics for this part

Part	Utilized IC / Part	Supplied Contents	Current - Output	Voltage - Output	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]	Outputs and Type	Outputs and Type	Board Type	Main Purpose	Frequency - Switching	Power - Output	Current - Output (Max) [Max]	Efficiency	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Applications	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Type	Voltage - Isolation	Package / Case	Voltage - Output 1	Number of Outputs
Vicor Corporation PI3105-00-EVAL1	PI3105-00	Board(s)	5 A	12 V	Buck	75 V	36 V	Isolated	1	Fully Populated	DC/DC Step Down	900 kHz	60 W
Vicor Corporation PI3105-00-HVIZ														5 A	88.5 %	60 W	16.5 mm	0.27 "	0.87 in	0.65 in	6.7 mm	22 mm	Surface Mount	125 °C	-40 °C	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	75 V	36 V	Isolated Module	2250 VDC	8-SMD Module	12 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

PI3105-00 - DC/DC, Step Down 1, Isolated Outputs Evaluation Board
