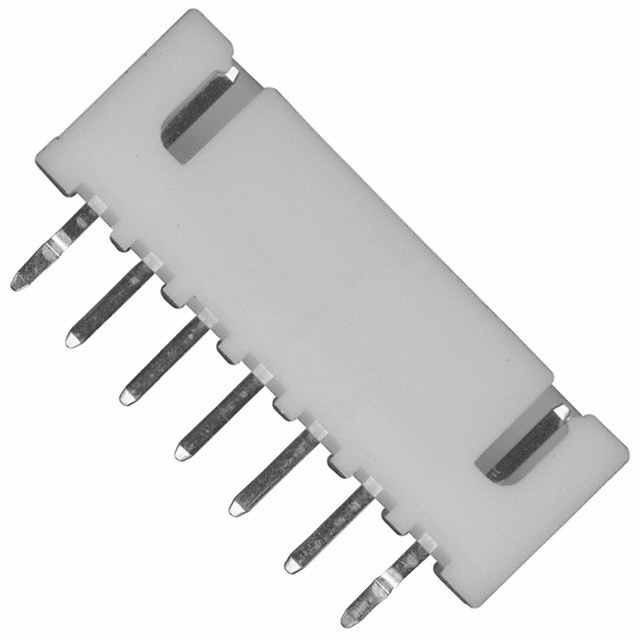

B7B-XH-A

Active

JST Sales America Inc.

CONN HEADER VERT 7POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 7POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	B7B-XH-A

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height [z]	7 mm
Insulation Height [z]	0.276 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Mated Stacking Heights	9.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	250 VDC

Part	Connector Type	Voltage Rating	Mounting Type	Style	Insulation Material	Pitch - Mating	Pitch - Mating	Termination	Shrouding	Number of Positions	Contact Finish - Post	Insulation Color	Contact Shape	Contact Material	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Mated Stacking Heights	Fastening Type	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Material Flammability Rating	Features
JST Sales America Inc. B7B-XH-A	Header	250 VDC	Through Hole	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6	2.5 mm	0.098 in	Press-Fit Solder	Shrouded - 4 Wall	7	Tin	Natural	Square	Brass	1	-25 °C	85 °C	Male Pin	0.134 in	3.4 mm	9.8 mm	Detent Lock	All	7 mm	0.276 in	3 A	UL94 V-0
JST Sales America Inc. B7B-XH-AM	Header	250 VDC	Through Hole	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6	2.5 mm	0.098 in	Press-Fit Solder	Shrouded - 4 Wall	7	Tin	Natural	Square	Brass	1	-25 °C	85 °C	Male Pin	0.134 in	3.4 mm	9.8 mm	Detent Lock	All	7 mm	0.276 in	3 A	UL94 V-0	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 7 position 0.098" (2.50mm)
