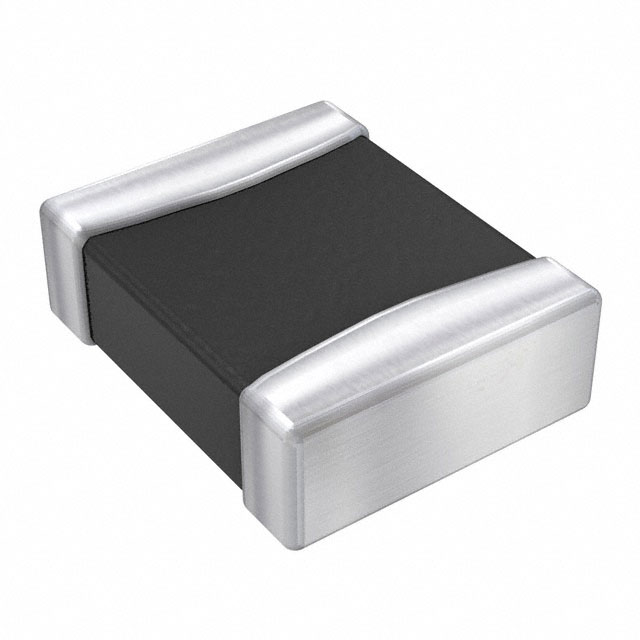

LQM2HPN2R2MEHL

Active

Murata Power Solutions Inc.

FIXED IND 2.2UH 1.3A 188MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LQM2HPN2R2MEHL

Active

Murata Power Solutions Inc.

FIXED IND 2.2UH 1.3A 188MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LQM2HPN2R2MEHL

Current - Saturation (Isat)	800 mA
Current Rating (Amps)	1.3 A
DC Resistance (DCR) [Max]	188 mOhm
Frequency - Self Resonant	30 MHz
Height - Seated (Max) [Max] [z]	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "
Inductance	2.2 µH
Inductance Frequency - Test	1 MHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	1008
Shielding	Shielded
Size / Dimension [x]	0.098 "
Size / Dimension [x]	2.5 mm
Size / Dimension [y]	2 mm
Size / Dimension [y]	0.079 in
Supplier Device Package	2520
Supplier Device Package	1008
Tolerance	20 %
Type	Multilayer

LQM2HPN Series

Part	Current Rating (Amps)	Inductance Frequency - Test	Frequency - Self Resonant	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Shielding	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Material - Core	Tolerance	Supplier Device Package	Supplier Device Package	DC Resistance (DCR)	Mounting Type	Inductance	Operating Temperature [Min]	Operating Temperature [Max]	Current - Saturation (Isat)	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Murata Power Solutions Inc. LQM2HPN2R2MG0L	1.3 A	1 MHz	40 MHz	0.098 "	2 mm	2.5 mm	0.079 in	Shielded	Multilayer	0.039 "	1 mm	1008	Ferrite	20 %	2520	1008	100 mOhm	Surface Mount	2.2 µH	-55 °C	125 °C
Murata Power Solutions Inc. LQM2HPNR47MCHL
Murata Power Solutions Inc. LQM2HPNR47MGHL	2.6 A	1 MHz	80 MHz	0.098 "	2 mm	2.5 mm	0.079 in	Shielded	Multilayer	0.039 "	1 mm	1008	Ferrite	20 %	2520	1008	50 mOhm	Surface Mount	470 nH	-40 °C	85 °C	4.5 A
Murata Power Solutions Inc. LQM2HPN1R5MEHL	1.45 A	1 MHz	40 MHz	0.098 "	2 mm	2.5 mm	0.079 in	Shielded	Multilayer			1008	Ferrite	20 %	2520	1008		Surface Mount	1.5 µH	-40 °C	85 °C	1.2 A	150 mOhm	0.8 mm	0.031 "
Murata Power Solutions Inc. LQM2HPNR47MG0L	1.8 A	1 MHz	100 MHz	0.098 "	2 mm	2.5 mm	0.079 in	Shielded	Multilayer	0.039 "	1 mm	1008	Ferrite	20 %	2520	1008	50 mOhm	Surface Mount	470 nH	-55 °C	125 °C
Murata Power Solutions Inc. LQM2HPNR24MCHL
Murata Power Solutions Inc. LQM2HPN2R2MEHL	1.3 A	1 MHz	30 MHz	0.098 "	2 mm	2.5 mm	0.079 in	Shielded	Multilayer			1008	Ferrite	20 %	2520	1008		Surface Mount	2.2 µH	-40 °C	85 °C	800 mA	188 mOhm	0.8 mm	0.031 "
Murata Power Solutions Inc. LQM2HPN1R5MGHL	2 A	1 MHz	40 MHz	0.098 "	2 mm	2.5 mm	0.079 in	Shielded	Multilayer	0.039 "	1 mm	1008	Ferrite	20 %	2520	1008		Surface Mount	1.5 µH	-40 °C	85 °C		81 mOhm
Murata Power Solutions Inc. LQM2HPN4R7MGCL	800 mA	1 MHz	25 MHz	0.098 "	2 mm	2.5 mm	0.079 in	Shielded	Multilayer	0.039 "	1 mm	1008	Ferrite	20 %	2520	1008	225 mOhm	Surface Mount	4.7 ÁH	-55 °C	125 °C
Murata Power Solutions Inc. LQM2HPN1R0MJCL	1.5 A	1 MHz	50 MHz	0.098 "	2 mm	2.5 mm	0.079 in	Shielded	Multilayer	0.039 "	1 mm	1008		20 %	2520	1008		Surface Mount	1 µH	-55 °C	125 °C		108 mOhm
