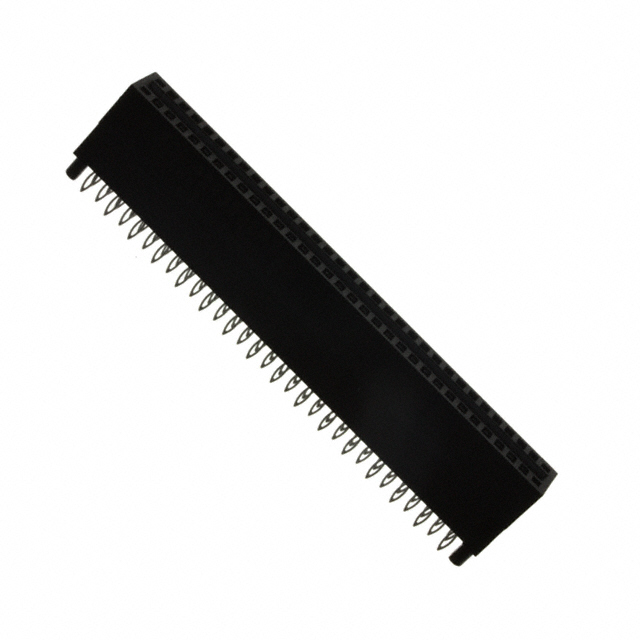

10075664-001LF

Active

Amphenol ICC (FCI)

CONN EDGE DUAL FMALE 62POS 0.100

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN EDGE DUAL FMALE 62POS 0.100

Technical Specifications

Parameters and characteristics for this part

Specification	10075664-001LF

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Features	Board Guide
Gender	Female
Material - Insulation	Thermoplastic
Mounting Type	Through Hole
Number of Positions	62
Number of Positions/Bay/Row [custom]	31
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Press-Fit

Part	Features	Number of Positions	Number of Positions/Bay/Row [custom]	Number of Rows	Read Out	Mounting Type	Contact Finish	Termination	Color	Card Type	Pitch [x]	Pitch [x]	Material - Insulation	Gender	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Card Thickness	Card Thickness	Contact Type	Number of Positions/Bay/Row [custom]
Amphenol ICC (FCI) 10075664-001LF	Board Guide	62	31	2	Dual	Through Hole	Gold	Press-Fit	Black	Non Specified - Dual Edge	2.54 mm	0.1 in	Thermoplastic	Female	Copper Alloy	0.76 Ám	30 Áin	0.062 in	1.57 mm
Amphenol ICC (FCI) 10075664-009LF	Board Guide	72		2	Dual	Through Hole	Gold	Press-Fit	Black	Non Specified - Dual Edge	2.54 mm	0.1 in	Thermoplastic	Female	Copper Alloy	0.76 Ám	30 Áin	0.062 in	1.57 mm	Cantilever	36

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	420	$ 10.34

General part information

62 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
