10114830-10103LF
ActiveAmphenol ICC (FCI)

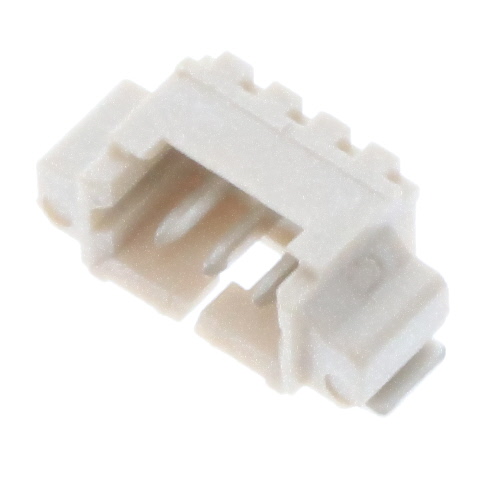

CONN HEADER SMD R/A 3POS 1.25MM
Deep-Dive with AI
Search across all available documentation for this part.
10114830-10103LF
ActiveAmphenol ICC (FCI)
CONN HEADER SMD R/A 3POS 1.25MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10114830-10103LF |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Contact Shape | Rectangular |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 0.134 in |
| Insulation Height | 3.4 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 125 VDC |
10114830 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Number of Positions | Insulation Color | Voltage Rating | Material Flammability Rating | Fastening Type | Contact Finish - Mating | Contact Shape | Contact Type | Number of Positions Loaded | Number of Rows | Mounting Type | Pitch - Mating | Pitch - Mating | Contact Material | Insulation Height | Insulation Height | Shrouding | Features | Contact Finish Thickness - Mating | Style | Termination | Insulation Material | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | -40 °C | 105 ░C | Header | 12 | Natural | 125 VDC | UL94 V-0 | Detent Lock | Gold | Rectangular | Male Pin | All | 1 | Surface Mount Right Angle | 1.25 mm | 0.049 in | Phosphor Bronze | 0.134 in | 3.4 mm | Shrouded - 4 Wall | Solder Retention | Flash | Board to Cable/Wire | Solder | Liquid Crystal Polymer (LCP) | |||||
Amphenol ICC (FCI) | -40 °C | 105 ░C | Header | Natural | 125 VDC | UL94 V-0 | Detent Lock | Rectangular | Male Pin | All | 1 | Surface Mount Right Angle | 1.25 mm | 0.049 in | Phosphor Bronze | 0.134 in | 3.4 mm | Shrouded - 4 Wall | Solder Retention | Board to Cable/Wire | Solder | Liquid Crystal Polymer (LCP) | Tin | |||||||
Amphenol ICC (FCI) | -40 °C | 105 ░C | Header | 2 | Natural | 125 VDC | UL94 V-0 | Detent Lock | Gold | Rectangular | Male Pin | All | 1 | Surface Mount Right Angle | 1.25 mm | 0.049 in | Phosphor Bronze | 0.134 in | 3.4 mm | Shrouded - 4 Wall | Solder Retention | Flash | Board to Cable/Wire | Solder | Liquid Crystal Polymer (LCP) | |||||
Amphenol ICC (FCI) | -40 °C | 105 ░C | Header | Natural | 125 VDC | UL94 V-0 | Detent Lock | Gold | Rectangular | Male Pin | All | 1 | Surface Mount Right Angle | 1.25 mm | 0.049 in | Phosphor Bronze | 0.134 in | 3.4 mm | Shrouded - 4 Wall | Solder Retention | Board to Cable/Wire | Solder | Liquid Crystal Polymer (LCP) | Tin | 30 Áin | 0.76 Ám | 2.54 µm | 100 µin | ||
Amphenol ICC (FCI) | -40 °C | 105 ░C | Header | 7 | Natural | 125 VAC | UL94 V-0 | Detent Lock | Rectangular | Male Pin | All | 1 | Surface Mount Right Angle | 1.25 mm | 0.049 in | Phosphor Bronze | 0.134 in | 3.4 mm | Shrouded - 4 Wall | Solder Retention | Board to Cable/Wire | Solder | Liquid Crystal Polymer (LCP) | Tin | 100 çin | 2.54 çm | 2.54 µm | 100 µin | ||
Amphenol ICC (FCI) | -40 °C | 105 ░C | Header | 8 | Natural | 125 VDC | UL94 V-0 | Detent Lock | Gold | Rectangular | Male Pin | All | 1 | Surface Mount Right Angle | 1.25 mm | 0.049 in | Phosphor Bronze | 0.134 in | 3.4 mm | Shrouded - 4 Wall | Solder Retention | Flash | Board to Cable/Wire | Solder | Liquid Crystal Polymer (LCP) | |||||
Amphenol ICC (FCI) | -40 °C | 105 ░C | Header | Natural | 125 VDC | UL94 V-0 | Detent Lock | Rectangular | Male Pin | All | 1 | Surface Mount Right Angle | 1.25 mm | 0.049 in | Phosphor Bronze | 0.134 in | 3.4 mm | Shrouded - 4 Wall | Solder Retention | Board to Cable/Wire | Solder | Liquid Crystal Polymer (LCP) | Tin | |||||||
Amphenol ICC (FCI) | -40 °C | 105 ░C | Header | 6 | Natural | 125 VDC | UL94 V-0 | Detent Lock | Rectangular | Male Pin | All | 1 | Surface Mount Right Angle | 1.25 mm | 0.049 in | Phosphor Bronze | 0.134 in | 3.4 mm | Shrouded - 4 Wall | Solder Retention | Board to Cable/Wire | Solder | Liquid Crystal Polymer (LCP) | Tin | ||||||
Amphenol ICC (FCI) | -40 °C | 105 ░C | Header | 11 | Natural | 125 VDC | UL94 V-0 | Detent Lock | Gold | Rectangular | Male Pin | All | 1 | Surface Mount Right Angle | 1.25 mm | 0.049 in | Phosphor Bronze | 0.134 in | 3.4 mm | Shrouded - 4 Wall | Solder Retention | Flash | Board to Cable/Wire | Solder | Liquid Crystal Polymer (LCP) | |||||
Amphenol ICC (FCI) | -40 °C | 105 ░C | Header | 7 | Natural | 125 VDC | UL94 V-0 | Detent Lock | Rectangular | Male Pin | All | 1 | Surface Mount Right Angle | 1.25 mm | 0.049 in | Phosphor Bronze | 0.134 in | 3.4 mm | Shrouded - 4 Wall | Solder Retention | Board to Cable/Wire | Solder | Liquid Crystal Polymer (LCP) | Tin |
