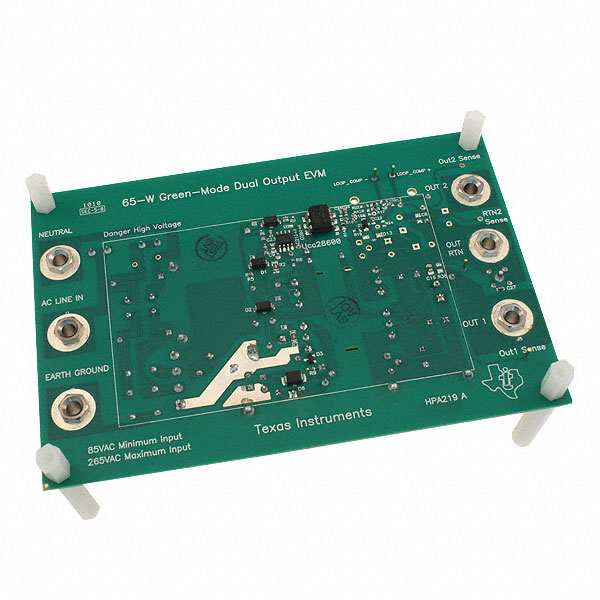

UCC28600EVM-65W

Obsolete

Texas Instruments

EVAL MODULE FOR UCC28600-65W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UCC28600EVM-65W

Obsolete

Texas Instruments

EVAL MODULE FOR UCC28600-65W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UCC28600EVM-65W

Board Type	Fully Populated
Main Purpose	Primary Side, AC/DC
Outputs and Type	Isolated
Outputs and Type	1
Regulator Topology	Flyback
Supplied Contents	Board(s)
Utilized IC / Part	UCC28600
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Output	18 V

UCC28600-Q1 Series

Automotive 8-pin current mode Flyback controller with green mode

Part	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Supplier Device Package	Fault Protection	Power (Watts)	Duty Cycle	Output Isolation	Mounting Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Frequency - Switching [Max]	Frequency - Switching [Min]	Package / Case	Package / Case [y]	Package / Case [x]	Regulator Topology	Voltage - Output	Main Purpose	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents	Utilized IC / Part	Board Type	Current - Output	Qualification	Grade
Texas Instruments UCC28600DR	Soft Start	105 °C	-40 °C	Flyback	8-SOIC	Current Limiting Over Temperature Over Voltage	200 W	99 %	Isolated	Surface Mount	21 V	8 V	130 kHz	40 kHz	8-SOIC	3.9 mm	0.154 in
Texas Instruments UCC28600EVM-65W																		Flyback	18 V	AC/DC Primary Side	Isolated	1	85 VAC	265 VAC	Board(s)	UCC28600	Fully Populated
Texas Instruments UCC28600D	Soft Start	105 °C	-40 °C	Flyback	8-SOIC	Current Limiting Over Temperature Over Voltage	200 W	99 %	Isolated	Surface Mount	21 V	8 V	130 kHz	40 kHz	8-SOIC	3.9 mm	0.154 in
Texas Instruments UCC28600DRG4	Soft Start	105 °C	-40 °C	Flyback	8-SOIC	Current Limiting Over Temperature Over Voltage	200 W	99 %	Isolated	Surface Mount	21 V	8 V	130 kHz	40 kHz	8-SOIC	3.9 mm	0.154 in
Texas Instruments UCC28600DG4	Soft Start	105 °C	-40 °C	Flyback	8-SOIC	Current Limiting Over Temperature Over Voltage	200 W	99 %	Isolated	Surface Mount	21 V	8 V	130 kHz	40 kHz	8-SOIC	3.9 mm	0.154 in
Texas Instruments UCC28600EVM																		Flyback	19.4 V	AC/DC Primary Side	Isolated	1	85 VAC	265 VAC	Board(s)	UCC28600	Fully Populated	6.2 A
Texas Instruments UCC28600TDRQ1	Soft Start	105 °C	-40 °C	Flyback	8-SOIC	Current Limiting Over Temperature Over Voltage	200 W	99 %	Isolated	Surface Mount	21 V	8 V	130 kHz	40 kHz	8-SOIC	3.9 mm	0.154 in												AEC-Q100	Automotive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

UCC28600-Q1 Series

The UCC28600-Q1 is a PWM controller with advanced energy features to meet stringent world-wide energy efficiency requirements.

UCC28600-Q1 integrates built-in advanced energy saving features with high level protection features to provide cost effective solutions for energy efficient power supplies. UCC28600-Q1 incorporates frequency fold back and green mode operation to reduce the operation frequency at light load and no load operations.

UCC28600-Q1 is offered in the 8-pin SOIC (D) package. Operating ambient temperature range is –40°C to 105°C.
