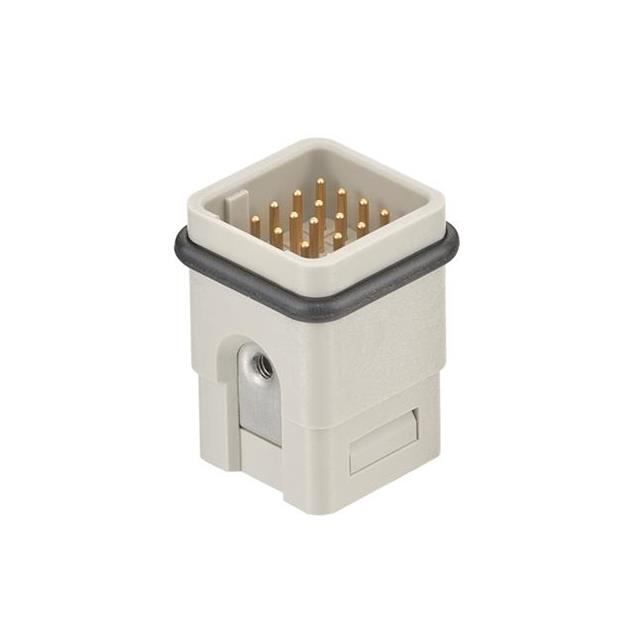

09120213001

Active

HARTING Technology Group

HAN Q HIGH DENSITY -M-

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN Q HIGH DENSITY -M-

Technical Specifications

Parameters and characteristics for this part

Specification	09120213001

Color	Gray
Connector Type	Insert without Contacts
Contact Type	D-Sub
Current Rating (Amps)	6.5 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	21
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	3 A
Termination Style	Crimp

Part	Contact Type	Material Flammability Rating	Connector Type	Gender	Current Rating (Amps)	Housing Material	Number of Positions	Size	Color	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]
HARTING Technology Group 09120213001	D-Sub	UL94 V-0	Insert without Contacts	Male	6.5 A	Polycarbonate (PC)	21	3 A	Gray	Crimp	125 °C	-40 °C
HARTING Technology Group 09120213101	D-Sub	UL94 V-0	Insert without Contacts	Female	6.5 A	Polycarbonate (PC)	21	3 A	Gray	Crimp	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts Gray 21 Position Crimp
