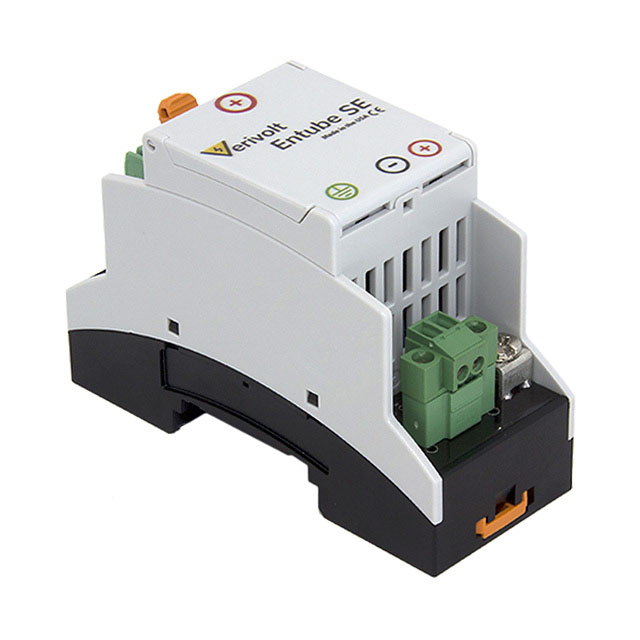

ENTUBE SE (50V 5V)

Active

Verivolt LLC

TRANSDUCER VOLTAGE DIVIDER

Search across all available documentation for this part.

Active

Verivolt LLC

TRANSDUCER VOLTAGE DIVIDER

Technical Specifications

Parameters and characteristics for this part

Part	Input Range	Type	Output	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy	Termination Style	Mounting Type	Input Range [Max]	Input Range [Min]	Output [Max]	Output [Min]
Verivolt LLC ENTUBE SE STD (3000V)	3000 V	Voltage Transducer	5 V	70 °C	-25 °C	0.2 %	BNC SHV
Verivolt LLC ENTUBE SE (50V 5V)	50 V	Voltage Transducer	5 V	70 °C	-25 °C	0.2 %	Spring Terminal	DIN Rail
Verivolt LLC ENTUBE SE STD (250VAC 7VAC)		Voltage Transducer		70 °C	-25 °C	0.2 %	BNC		250 VAC	0 VAC	7 VAC	0 VAC
Verivolt LLC ENTUBE SE (50V 10V)	50 V	Voltage Transducer	10 V	70 °C	-25 °C	0.2 %	Spring Terminal	DIN Rail
Verivolt LLC ENTUBE SE STD (100V)		Voltage Transducer	5 V	70 °C	-25 °C	0.2 %	BNC		100 V	-100 V
Verivolt LLC ENTUBE SE STD (50V)	50 V	Voltage Transducer	5 V	70 °C	-25 °C	0.2 %	BNC
Verivolt LLC ENTUBE SE (100V 10V)		Voltage Transducer	10 V	70 °C	-25 °C	0.2 %	Spring Terminal	DIN Rail	100 V	-100 V
Verivolt LLC ENTUBE SE STD (500VAC 7VAC)		Voltage Transducer		70 °C	-25 °C	0.2 %	BNC		500 VAC	0 VAC	7 VAC	0 VAC
Verivolt LLC ENTUBE SE (1500V 10V)	1500 V	Voltage Transducer	10 V	70 °C	-25 °C	0.2 %	Spring Terminal	DIN Rail
Verivolt LLC ENTUBE SE STD (1000V)		Voltage Transducer	5 V	70 °C	-25 °C	0.2 %	BNC SHV		1000 V	-1000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Voltage Transducer ±50V Input ±5V Output DIN Rail

Technical documentation and resources
