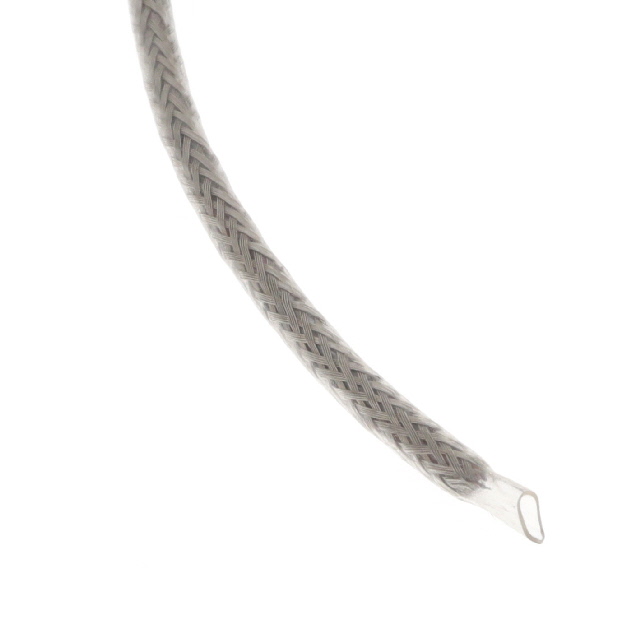

1122 CL002

Active

ALPHA WIRE

CABLE 4COND 28AWG CLEAR 500'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 28AWG CLEAR 500'

Technical Specifications

Parameters and characteristics for this part

Specification	1122 CL002

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	3.3 mm
Jacket (Insulation) Diameter [diameter]	0.13 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Clear
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	200 V
Wire Gauge	28 AWG

Part	Jacket Color	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Wire Gauge	Conductor Material	Length [x]	Length [x]	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage
ALPHA WIRE 1122 CL002	Clear	Multi-Conductor	36 AWG	7	200 V	4	-20 C	80 C	Poly-Vinyl Chloride (PVC)	28 AWG	Copper Tinned	500 '	152.4 m	Poly-Vinyl Chloride (PVC)	3.3 mm	0.13 in	Communication Control

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 2313.21

General part information

4 Conductor Multi-Conductor Cable Clear 28 AWG 500.0' (152.4m)
