M80-7076305

Active

Harwin Inc.

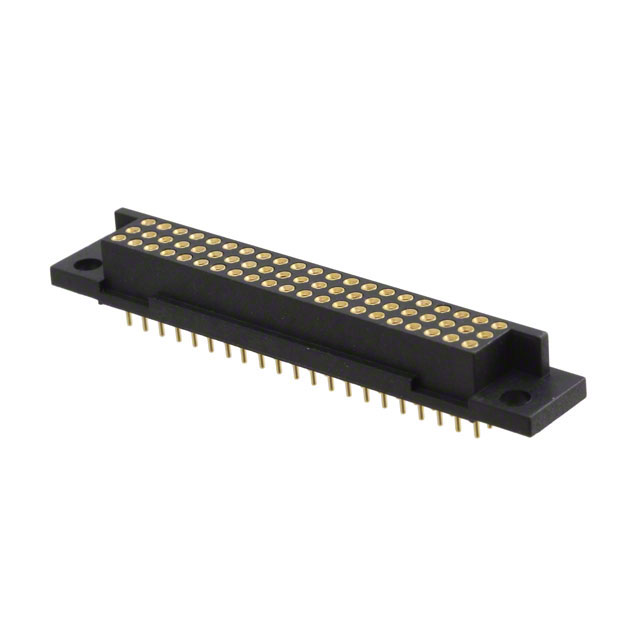

PCB RECEPTACLE, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 3 ROWS, 63 CONTACTS, THROUGH HOLE MOUNT

Search across all available documentation for this part.

Active

Harwin Inc.

PCB RECEPTACLE, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 3 ROWS, 63 CONTACTS, THROUGH HOLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	M80-7076305

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Finish Thickness - Post	0.3 µm
Contact Finish Thickness - Post	12 µin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Features	Mating Flange
Insulation Color	Black
Insulation Height	6.28 mm
Insulation Height	0.247 in
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	63
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

Part	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Number of Positions Loaded	Number of Rows	Contact Type	Number of Positions	Contact Finish - Mating	Features	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Style	Insulation Color	Mounting Type	Contact Material
Harwin Inc. M80-7075105	UL94 V-0	12 µin	0.3 µm	0.3 µm	12 µin	Solder	All	3	Female Socket	51	Gold	Mating Flange	0.079 in	2 mm	Circular	0.079 in	2 mm	6.28 mm	0.247 in	Gold	0.118 in	3 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	-55 °C	125 °C	Receptacle	Board to Board Cable	Black	Through Hole	Beryllium Copper
Harwin Inc. M80-7072705	UL94 V-0	12 µin	0.3 µm	0.3 µm	12 µin	Solder	All	3	Female Socket	27	Gold	Mating Flange	0.079 in	2 mm	Circular	0.079 in	2 mm	6.28 mm	0.247 in	Gold	0.118 in	3 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	-55 °C	125 °C	Receptacle	Board to Board Cable	Black	Through Hole	Beryllium Copper
Harwin Inc. M80-7076305	UL94 V-0	12 µin	0.3 µm	0.3 µm	12 µin	Solder	All	3	Female Socket	63	Gold	Mating Flange	0.079 in	2 mm	Circular	0.079 in	2 mm	6.28 mm	0.247 in	Gold	0.118 in	3 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	-55 °C	125 °C	Receptacle	Board to Board Cable	Black	Through Hole	Beryllium Copper
