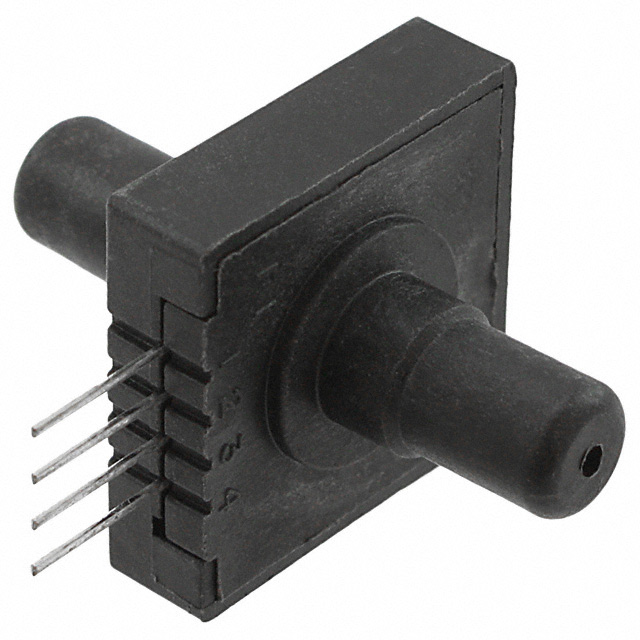

176PC14HD2
ActiveHoneywell Sensing and Productivity Solutions
SENSOR 0.51PSID 0.28" .035V
Deep-Dive with AI
Search across all available documentation for this part.
176PC14HD2
ActiveHoneywell Sensing and Productivity Solutions
SENSOR 0.51PSID 0.28" .035V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 176PC14HD2 |
|---|---|
| Accuracy | 3 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 34.88 kPa |
| Maximum Pressure [Max] | 5.06 PSI |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 35 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | 4-SIP Module |
| Port Size | Tube, Dual |
| Port Size [x] | 0.28 " |
| Port Size [x] | 7.11 mm |
| Port Style | Barbless |
| Pressure Type | Differential |
| Termination Style | PC Pin |
| Voltage - Supply [Max] | 16 V |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 30 | $ 748.14 | |
Description
General part information
176PC14 Series
Pressure Sensor 0.51PSI (3.49kPa) Differential Male - 0.28" (7.11mm) Tube, Dual 0 mV ~ 35 mV (10V) 4-SIP Module
