902-0096-000

Active

ROBOTIS

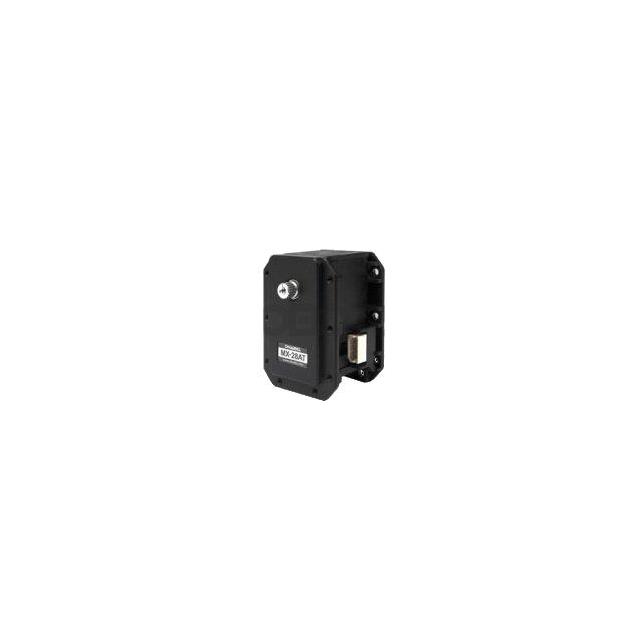

MX-28AT DYNAMIXEL SERVO

Search across all available documentation for this part.

Active

ROBOTIS

MX-28AT DYNAMIXEL SERVO

Technical Specifications

Parameters and characteristics for this part

Specification	902-0096-000

Encoder Type	Absolute
Features	Integrated Controller
Function	Servomotor
Gear Reduction Ratio	193
Motor Type	Brushed
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-5 °C
RPM	55 RPM
Size / Dimension [x]	1.992 in
Size / Dimension [x]	50.6 mm
Size / Dimension [y]	35.5 mm
Size / Dimension [y]	1.397 in
Termination Style	Connector
Torque - Max Momentary (oz-in / mNm)	354 oz-in
Torque - Max Momentary (oz-in / mNm)	2500 mNm
Type	DC Motor
Voltage - Rated	12 VDC
Weight	77 g
Weight	0.17 lb

Part	Type	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Motor Type	Function	RPM	Termination Style	Features	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Voltage - Rated	Encoder Type	Gear Reduction Ratio
ROBOTIS 902-0096-000	DC Motor	77 g	0.17 lb	80 C	-5 °C	35.5 mm	1.992 in	1.397 in	50.6 mm	Brushed	Servomotor	55 RPM	Connector	Integrated Controller	354 oz-in	2500 mNm	12 VDC	Absolute	193

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Brushed DC Motor Servomotor 55 RPM Absolute 12VDC
