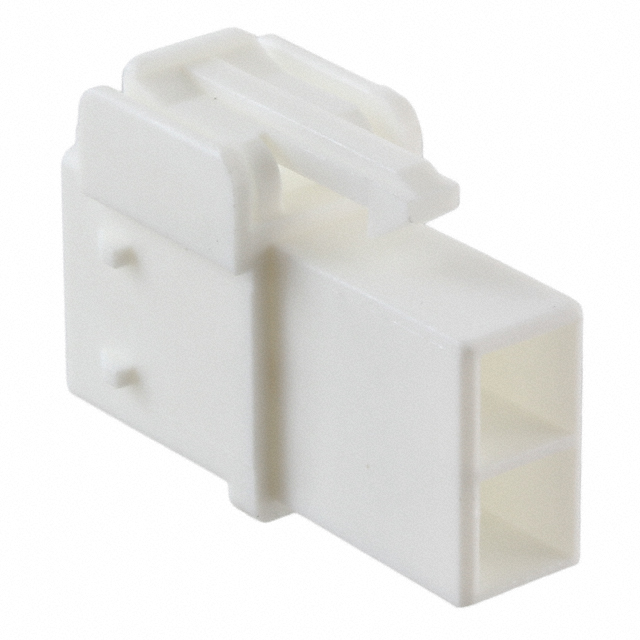

0355250200

Obsolete

Molex

CONN HSG RCPT 2POS 6.20MM NAT

Search across all available documentation for this part.

Obsolete

Molex

CONN HSG RCPT 2POS 6.20MM NAT

Technical Specifications

Parameters and characteristics for this part

Specification	0355250200

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Blade
Fastening Type	Latch Lock
Material - Insulation	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	6.2 mm
Pitch [x]	0.244 in
Stacking Direction	Side to Side

Part	Material - Insulation	Note	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Rows	Mounting Type	Number of Positions	Stacking Direction	Color	Fastening Type	Connector Type	Contact Termination
Molex 0355250200	Polybutylene Terephthalate (PBT)	Contacts Not Included	6.2 mm	0.244 in	-40 °C	120 °C	Male Blade	1	Free Hanging (In-Line)	2	Side to Side	Natural	Latch Lock	Receptacle	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Position Blade Type Power Housing Connector Receptacle Natural 0.244" (6.20mm)
