SKY67154-396EK1

Active

Skyworks Solutions Inc.

EVALUATION BOARD/KIT

Search across all available documentation for this part.

Active

Skyworks Solutions Inc.

EVALUATION BOARD/KIT

Technical Specifications

Parameters and characteristics for this part

Specification	SKY67154-396EK1

For Use With/Related Products	SKY67154-396LF
Frequency [Max]	3.8 GHz
Frequency [Min]	700 MHz
Supplied Contents	Board(s)
Type	Amplifier

Part	Type	For Use With/Related Products	Supplied Contents	Frequency [Max]	Frequency [Min]	Gain	Supplier Device Package	P1dB [Min]	P1dB [Max]	Mounting Type	Current - Supply	Test Frequency	Noise Figure	Package / Case	RF Type
Skyworks Solutions Inc. SKY67154-396EK1	Amplifier	SKY67154-396LF	Board(s)	3.8 GHz	700 MHz
Skyworks Solutions Inc. SKY67154-396LF				3.8 GHz	700 MHz	20 dBi	8-DFN (2x2)	3 dBm	21 dBm	Surface Mount	72 mA	2.5 GHz	0.55 dB	8-WFDFN Exposed Pad	GSM HSDPA LTE WCDMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 106.24

General part information

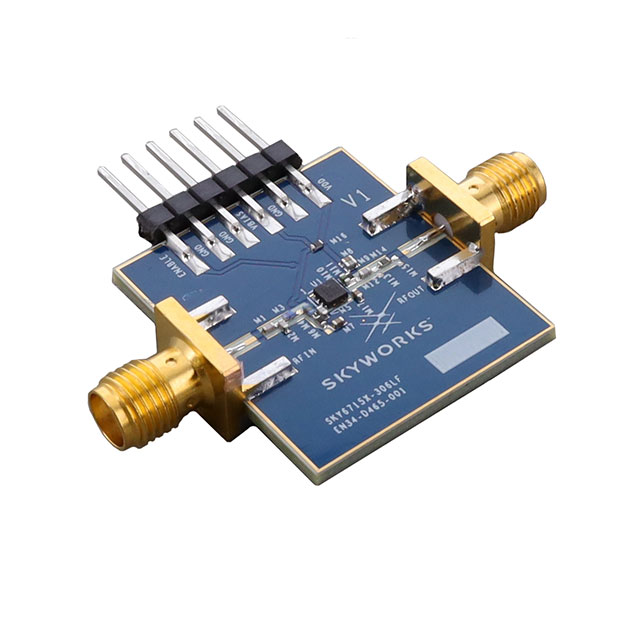

- SKY67154-396LF Amplifier 700MHz ~ 3.8GHz Evaluation Board

Technical documentation and resources
