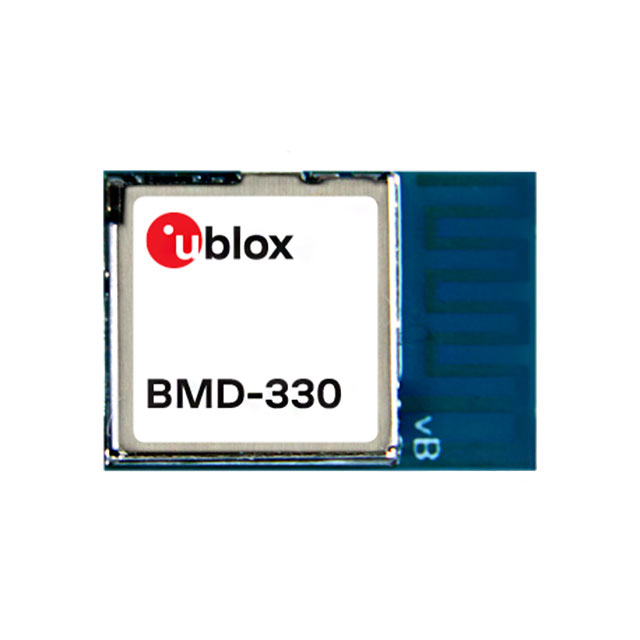

BMD-330-A-R
Activeu-blox
RF TXRX MOD BT TH SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BMD-330-A-R
Activeu-blox
RF TXRX MOD BT TH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BMD-330-A-R |
|---|---|
| Antenna Type | Integrated, Trace |
| Current - Receiving | 11.2 mA |
| Current - Transmitting | 15 mA |
| Data Rate | 2 Mbps |
| Frequency [Max] | 2.5 GHz |
| Frequency [Min] | 2.3 GHz |
| Memory Size | 192 kB, 24 kB |
| Modulation | GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 47-SMD Module |
| Power - Output | 4 dBm |
| Protocol | Bluetooth v5.0 |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | SPI, I2C, I2S, UART |
| Utilized IC / Part | nRF52810 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.78 | |
| 10 | $ 5.26 | |||
| 50 | $ 4.84 | |||
| 100 | $ 4.79 | |||
| Digi-Reel® | 1 | $ 5.78 | ||
| 10 | $ 5.26 | |||
| 50 | $ 4.84 | |||
| 100 | $ 4.79 | |||
| Tape & Reel (TR) | 1000 | $ 4.50 | ||
Description
General part information
BMD-330 Series
Bluetooth Bluetooth v5.0 Transceiver Module 2.3GHz ~ 2.5GHz Integrated, Trace Surface Mount
