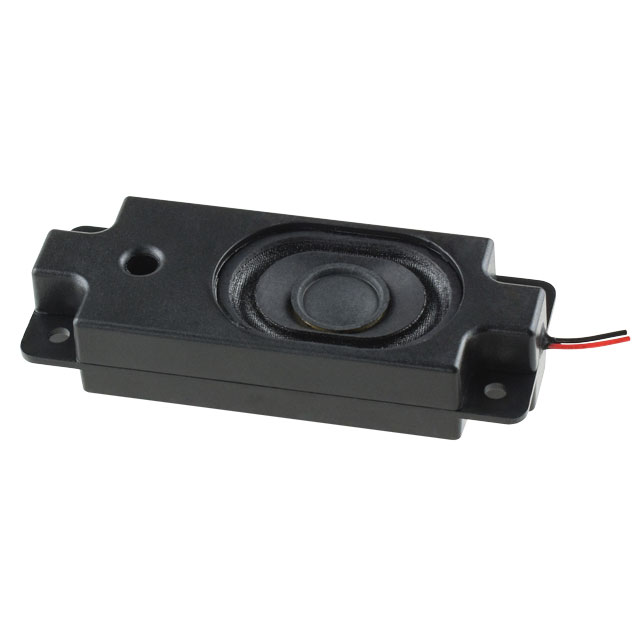

CES-803118-28PM
ActiveCUI Devices
SPEAKER 8OHM 2W TOP PORT 100DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CES-803118-28PM
ActiveCUI Devices
SPEAKER 8OHM 2W TOP PORT 100DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CES-803118-28PM |
|---|---|
| Distortion Rating | 5 % |
| Efficiency - dBA | 100 dBA |
| Efficiency - Testing | 2W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 650 Hz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 200 Hz |
| Height - Seated (Max) [Max] | 18 mm |
| Height - Seated (Max) [Max] [z] | 0.709 " |
| Impedance | 8 Ohms |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Power - Max [Max] | 3 W |
| Power - Rated | 2 W |
| Shape | Rectangular |
| Size / Dimension [x] | 3.15 in |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 31.1 mm |
| Size / Dimension [y] | 1.224 in |
| Technology | Magnetic |
| Termination | Wire Leads |
| Type | Enclosure Included, General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 6.10 | |
| 1 | $ 6.10 | |||
| 10 | $ 5.04 | |||
| 10 | $ 5.04 | |||
| 25 | $ 4.64 | |||
| 25 | $ 4.64 | |||
| 50 | $ 4.36 | |||
| 50 | $ 4.36 | |||
| 100 | $ 4.09 | |||
| 100 | $ 4.09 | |||
| 300 | $ 3.84 | |||
| 300 | $ 3.84 | |||
| 500 | $ 3.62 | |||
| 500 | $ 3.62 | |||
Description
General part information
CES-803118 Series
8 Ohms General Purpose, Enclosure Included Speaker 2 W 200 Hz ~ 20 kHz Top Rectangular
