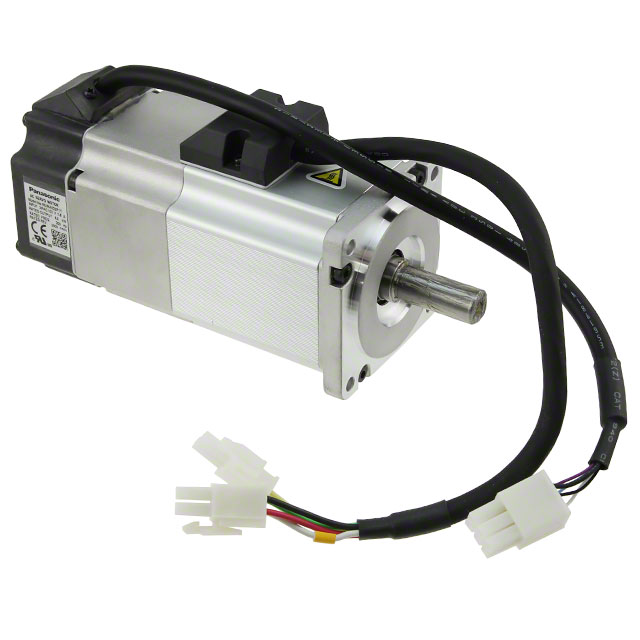

MUMA022P1T

Active

Panasonic Industrial Automation Sales

SERVOMOTOR 3000 RPM 200V

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

SERVOMOTOR 3000 RPM 200V

Technical Specifications

Parameters and characteristics for this part

Specification	MUMA022P1T

Approval Agency	TUV, CE, CSA, UL, cULus
Diameter - Shaft [diameter]	11 mm
Diameter - Shaft [diameter]	0.433 in
Encoder Type	Incremental
Features	Brake, Key
Function	Servomotor
Length - Shaft and Bearing [x]	30 mm
Length - Shaft and Bearing [x]	1.181 in
Mounting Hole Spacing	70 mm
Mounting Hole Spacing	2.756 in
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power - Rated	200 W
RPM	3000 RPM
Size / Dimension [x]	2.362 in
Size / Dimension [x]	60 mm
Size / Dimension [y]	2.362 in
Size / Dimension [y]	60 mm
Termination Style	Cable with Connector
Torque - Max Momentary (oz-in / mNm)	1910 mNm
Torque - Max Momentary (oz-in / mNm)	270.5 oz-in
Torque - Rated (oz-in / mNm)	90.65 oz-in
Torque - Rated (oz-in / mNm)	640 mNm
Type	AC Motor
Voltage - Rated	200 VAC
Weight	1.4 kg
Weight	3.1 lbs

Part	Voltage - Rated	Encoder Type	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Operating Temperature [Max]	Operating Temperature [Min]	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Approval Agency	Features	RPM	Termination Style	Type	Power - Rated	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight	Mounting Hole Spacing	Mounting Hole Spacing	Function	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]
Panasonic Industrial Automation Sales MUMA022P1T	200 VAC	Incremental	90.65 oz-in	640 mNm	40 °C	0 °C	11 mm	0.433 in	CE CSA cULus TUV UL	Brake Key	3000 RPM	Cable with Connector	AC Motor	200 W	1910 mNm	270.5 oz-in	2.362 in	2.362 in	60 mm	60 mm	1.4 kg	3.1 lbs	70 mm	2.756 in	Servomotor	30 mm	1.181 in
Panasonic Industrial Automation Sales MUMA022P1S	200 VAC	Incremental	90.65 oz-in	640 mNm	40 °C	0 °C	11 mm	0.433 in	CE CSA cULus TUV UL	Key	3000 RPM	Cable with Connector	AC Motor	200 W	1910 mNm	270.5 oz-in	2.362 in	2.362 in	60 mm	60 mm	1 kg	2.3 lbs	70 mm	2.756 in	Servomotor	30 mm	1.181 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC Motor Servomotor 3000 RPM 200W Incremental 200VAC
