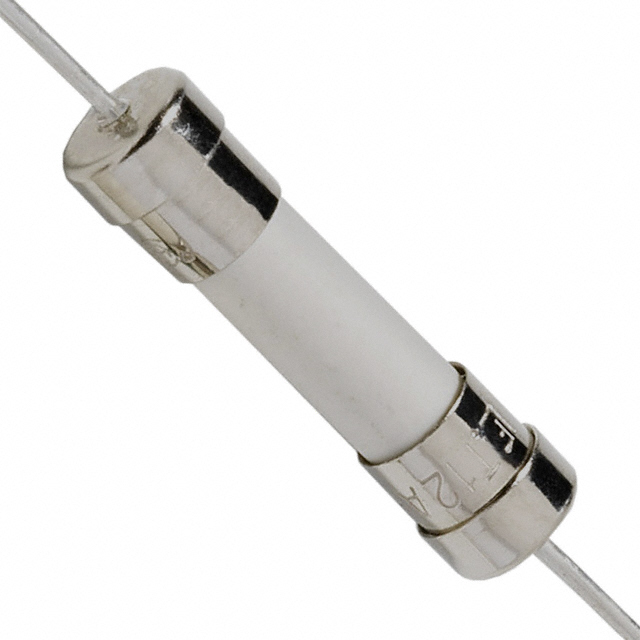

ActiveELECTRIC FUSE, TIME DELAY BLOW, 16A, 500VAC, 400VDC, 100A (IR), THROUGH HOLE, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
0477016.MXEP
ActiveELECTRIC FUSE, TIME DELAY BLOW, 16A, 500VAC, 400VDC, 100A (IR), THROUGH HOLE, ROHS COMPLIANT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0477016.MXEP |
|---|---|
| Approval Agency | PSE, cULus |
| Breaking Capacity @ Rated Voltage | 400 A, 100 A |
| Current Rating (Amps) | 16 A |
| DC Cold Resistance | 0.0031 Ohms |
| Fuse Type | Cartridge, Ceramic |
| Melting I²t | 1331.2 |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case [x] | 5 mm |
| Package / Case [y] | 20 mm |
| Response Time | Slow Blow |
| Size / Dimension [diameter] | 5.5 mm |
| Size / Dimension [diameter] | 0.217 " |
| Size / Dimension [x] | 0.846 in |
| Size / Dimension [x] | 21.5 mm |
| Voltage Rating - AC | 500 V |
| Voltage Rating - DC | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
0477016 Series
