0191250074

Active

Molex

CONN SPADE TERM 10-12AWG #6 YEL

Search across all available documentation for this part.

Active

Molex

CONN SPADE TERM 10-12AWG #6 YEL

Technical Specifications

Parameters and characteristics for this part

Specification	0191250074

Color	Yellow
Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Insulated
Insulation Diameter [diameter]	5.72 mm
Insulation Diameter [diameter]	0.225 "
Length - Overall	1.165 in
Length - Overall	29.6 mm
Length - Ring Center to Termination [x]	6.86 mm
Length - Ring Center to Termination [x]	0.27 in
Length - Termination	16.99 mm
Length - Termination	0.669 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	6 Stud
Terminal Type	Flanged
Termination	Crimp
Tongue Inside Opening [x]	3.71 mm
Tongue Inside Opening [x]	0.146 in
Width - Outer Edges [y]	0.345 in
Width - Outer Edges [y]	8.76 mm
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

Part	Contact Finish	Mounting Type	Length - Termination	Length - Termination [x]	Length - Overall [x]	Length - Overall [x]	Contact Material	Length - Ring Center to Termination	Length - Ring Center to Termination	Color	Insulation	Width - Outer Edges [x]	Width - Outer Edges [x]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Terminal Type	Stud/Tab Size	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Termination	Wire Gauge [Max]	Wire Gauge [Min]	Length - Ring Center to Termination [x]	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Termination	Length - Overall	Length - Overall	Length - Ring Center to Termination [x]
Molex 0191250033	Electro-Tin	Free Hanging (In-Line)	13.61 mm	0.536 "	23.77 mm	0.936 in	Copper	0.209 in	5.31 mm	Blue	Insulated	0.301 in	7.65 mm	3.71 mm	0.146 in	Flanged	6 Stud	4.19 mm	0.165 "	Crimp
Molex 0191250005	Electro-Tin	Free Hanging (In-Line)	13.61 mm	0.536 "	23.55 mm	0.927 in	Copper		5.26 mm	Red	Insulated	0.301 in	7.65 mm	4.39 mm	0.173 in	Flanged		3.51 mm	0.138 in	Crimp	22 AWG	17.5 AWG	0.207 in	8 Stud
Molex 0191250074	Electro-Tin	Free Hanging (In-Line)	16.99 mm				Copper			Yellow	Insulated			3.71 mm	0.146 in	Flanged	6 Stud	5.72 mm	0.225 "	Crimp	12 AWG	10 AWG	0.27 in		0.345 in	8.76 mm	0.669 in	1.165 in	29.6 mm	6.86 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

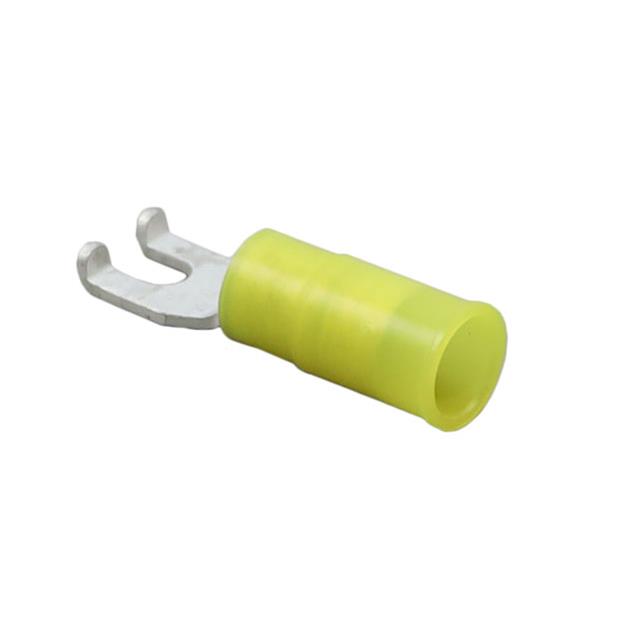

Yellow 6 Stud Spade Terminal Connector Crimp 10-12 AWG
