1.14001.5050000

Obsolete

RAFI USA

SWITCH TACTILE SPST-NO 0.1A 42V

Search across all available documentation for this part.

Obsolete

RAFI USA

SWITCH TACTILE SPST-NO 0.1A 42V

Technical Specifications

Parameters and characteristics for this part

Specification	1.14001.5050000

Actuator Height off PCB, Vertical	13.5 mm
Actuator Orientation	Side Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	42 VAC/DC, 0.1 A
Illumination	Non-Illuminated
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Force	360 gf
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Outline [x]	13.6 mm
Outline [y]	13.5 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.61 mm
Termination Style	PC Pin

Part	Mounting Type	Switch Function	Circuit	Mechanical Life	Termination Style	Contact Rating @ Voltage	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Actuator Height off PCB, Vertical	Switch Travel [custom]	Operating Force	Outline [y]	Outline [x]	Actuator Orientation	Switch Travel [custom]
RAFI USA 1.14001.6010000
RAFI USA 1.14001.5050000	Through Hole Right Angle	Off-Mom	SPST-NO	1000000 Cycles	PC Pin	0.1 A 42 VAC/DC	Standard	90 °C	-40 °C	Non-Illuminated	13.5 mm	0.61 mm	360 gf	13.5 mm	13.6 mm	Side Actuated
RAFI USA 1.14001.8020000	Through Hole	Off-Mom	SPST-NO	1000000 Cycles	PC Pin	0.1 A 35 VAC/DC	Standard	90 °C	-40 °C	Non-Illuminated	4.95 mm		479 gf	12 mm	12 mm	Top Actuated	0.66 mm
RAFI USA 1.14001.8030000	Surface Mount	Off-Mom	SPST-NO	1000000 Cycles	Gull Wing	0.1 A 35 VAC/DC	Standard	90 °C	-40 °C	Non-Illuminated	5.05 mm		479 gf	12 mm	12 mm	Top Actuated	0.66 mm
RAFI USA 1.14001.5020000	Through Hole	Off-Mom	SPST-NO	1000000 Cycles	PC Pin	0.1 A 42 VAC/DC	Standard	80 C	-40 °C	Non-Illuminated	4.95 mm	0.61 mm	360 gf	12 mm	12 mm	Top Actuated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

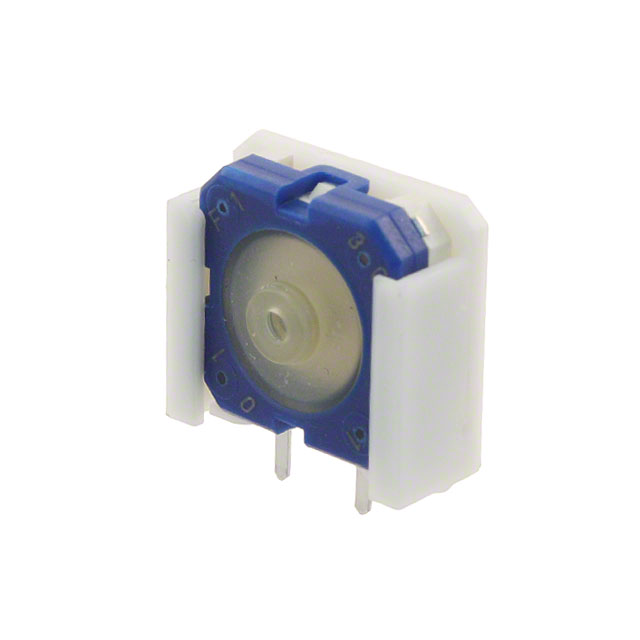

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle

Technical documentation and resources
